Vought F4U-1 Corsair  - 1:15 Scale

100% Scratch Built - Handcrafted Aluminum Model

Built between 1990 and 1999 - Engineering model - Operating ailerons, elevators

and rudder from cockpit - Operating folding wings, flaps and cowl flaps -

Fully detailed Pratt & Whitney R-2800-8 Double Wasp, induction and hydraulic system -

Operating navigation, identification, landing lights and propeller

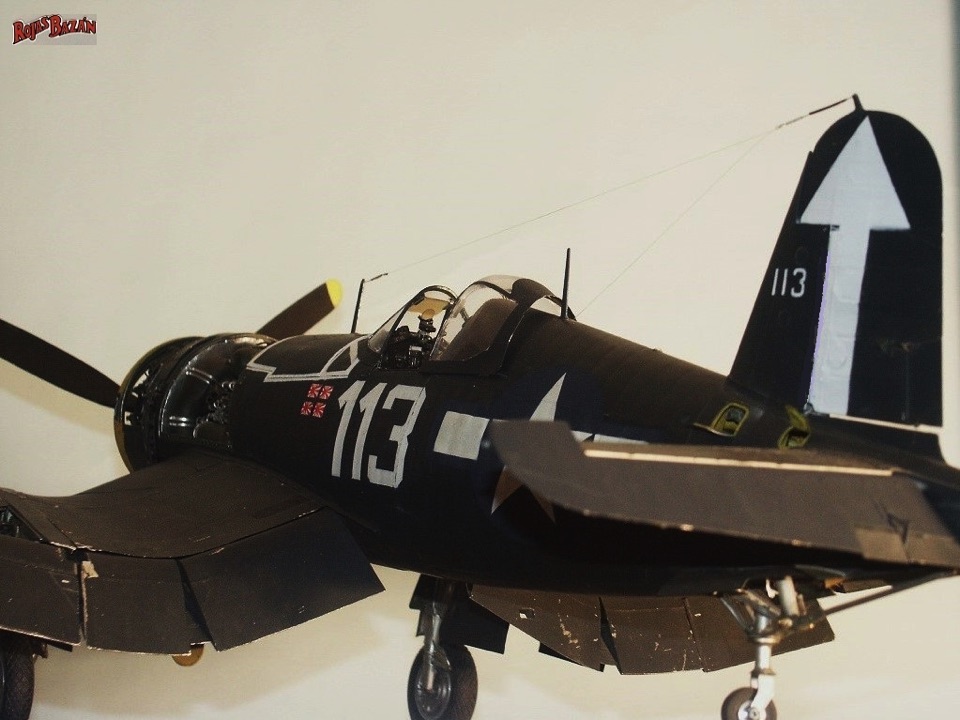

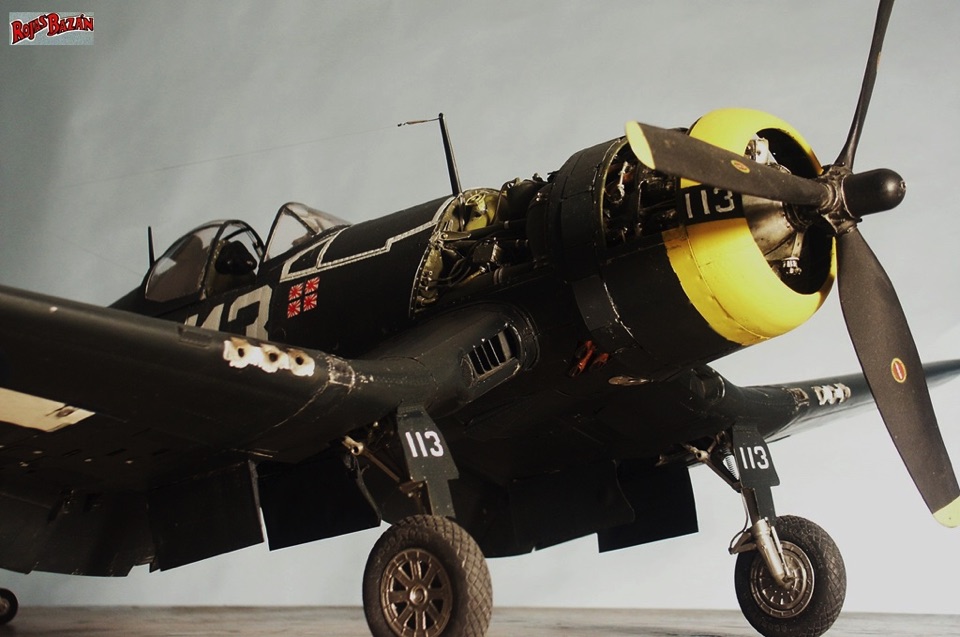

General view of the completed model

Firewall bulkhead, beam and side panels

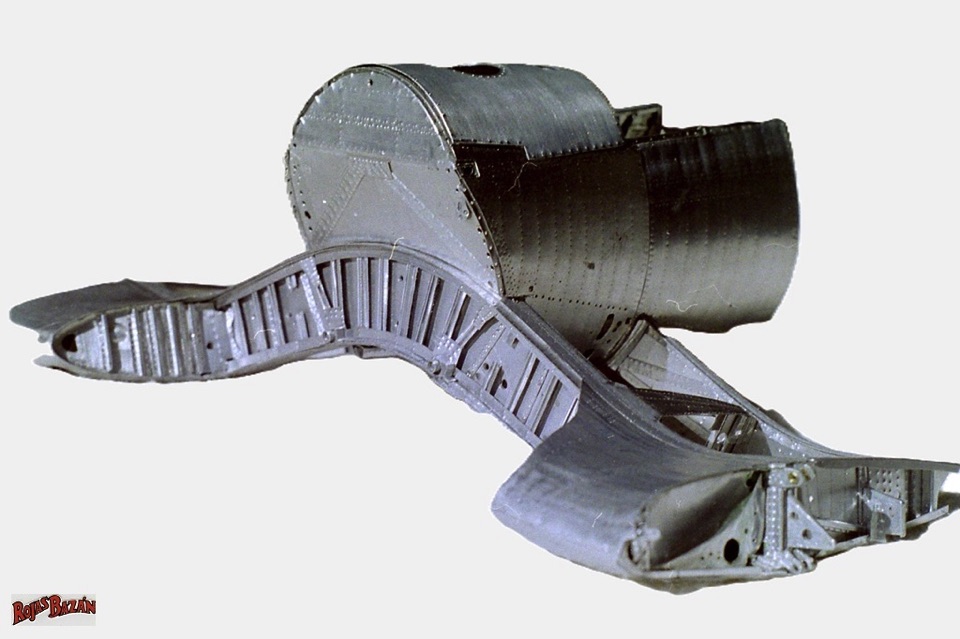

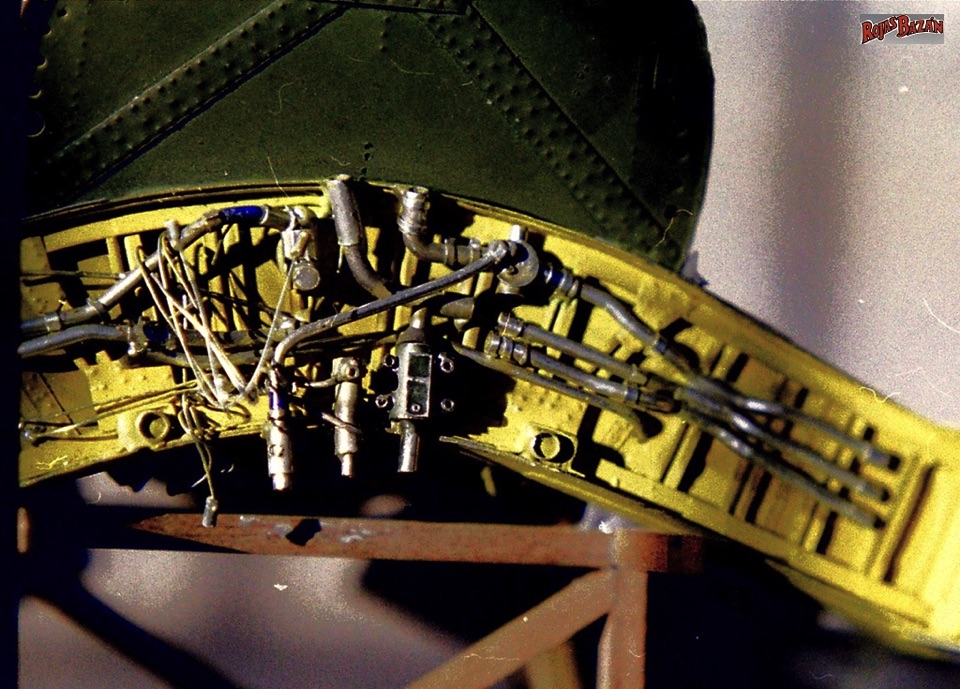

Center section beam with tubing and wiring

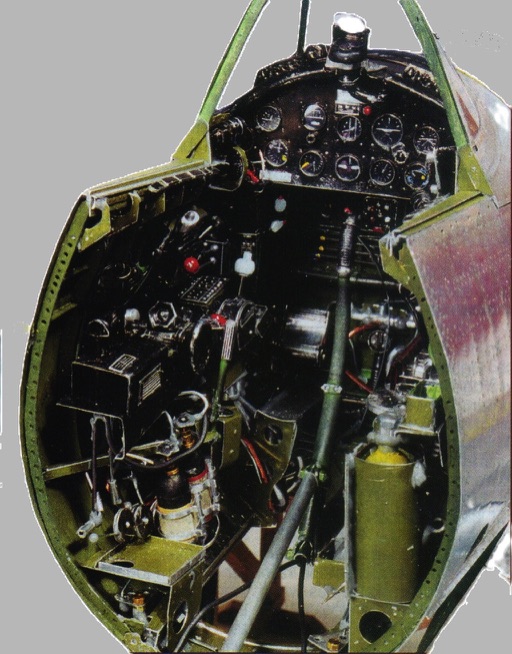

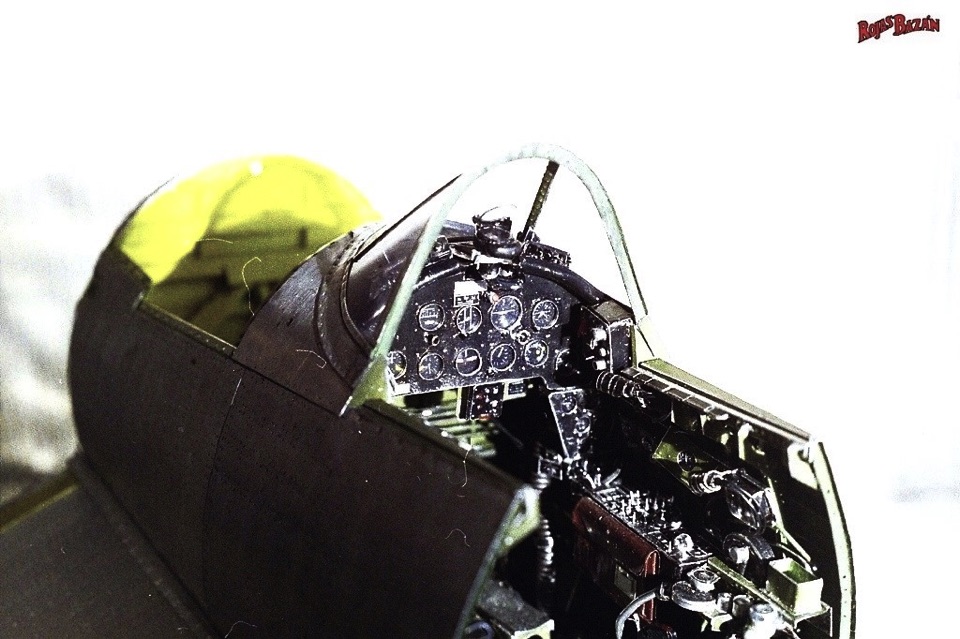

Cockpit details

Cockpit details

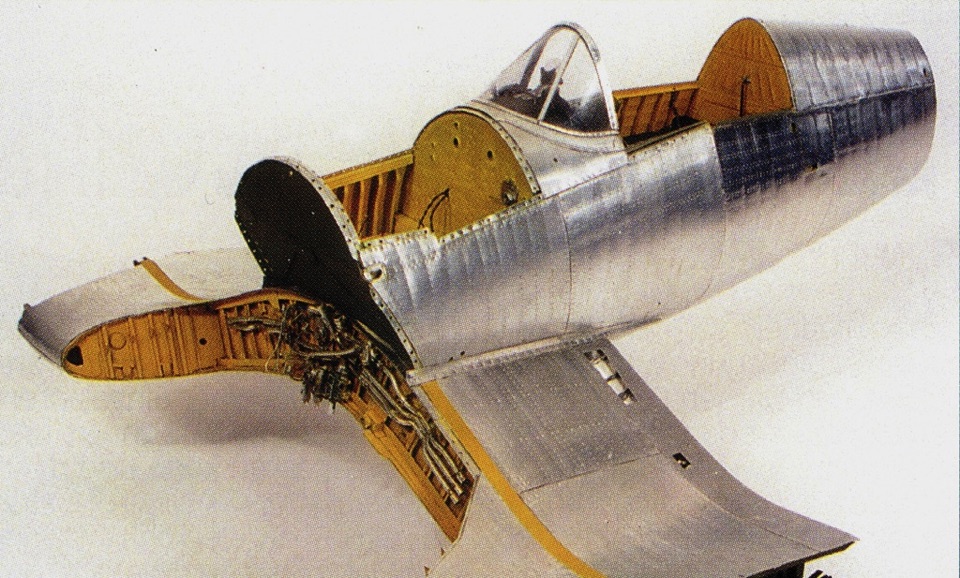

Fuselage main section

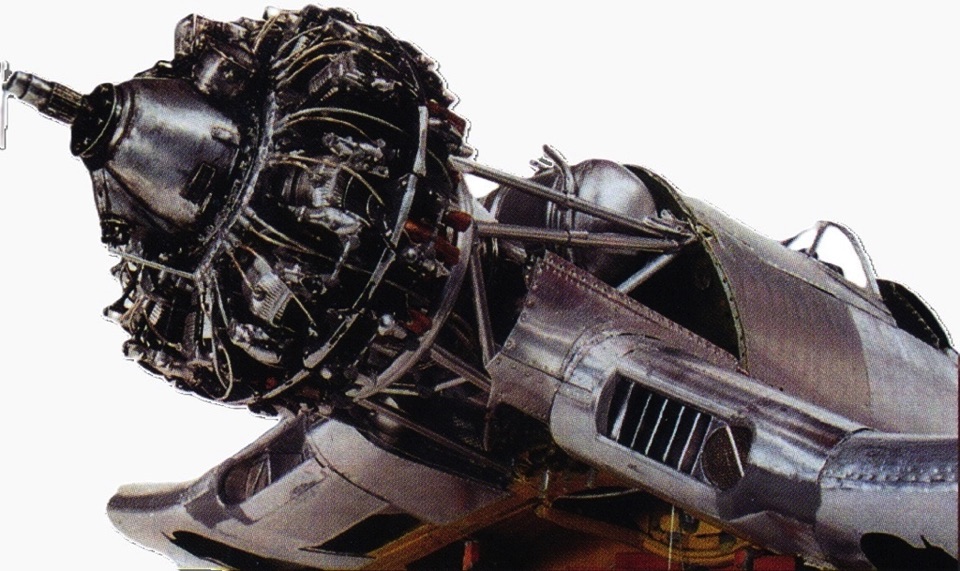

Pratt & Whitney R-2800-8 Double Wasp installation

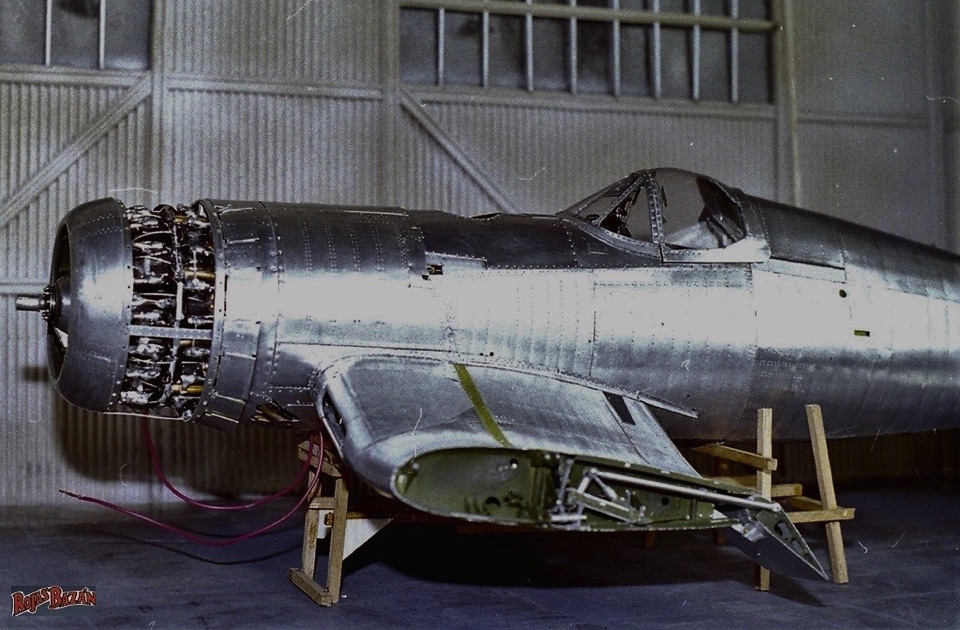

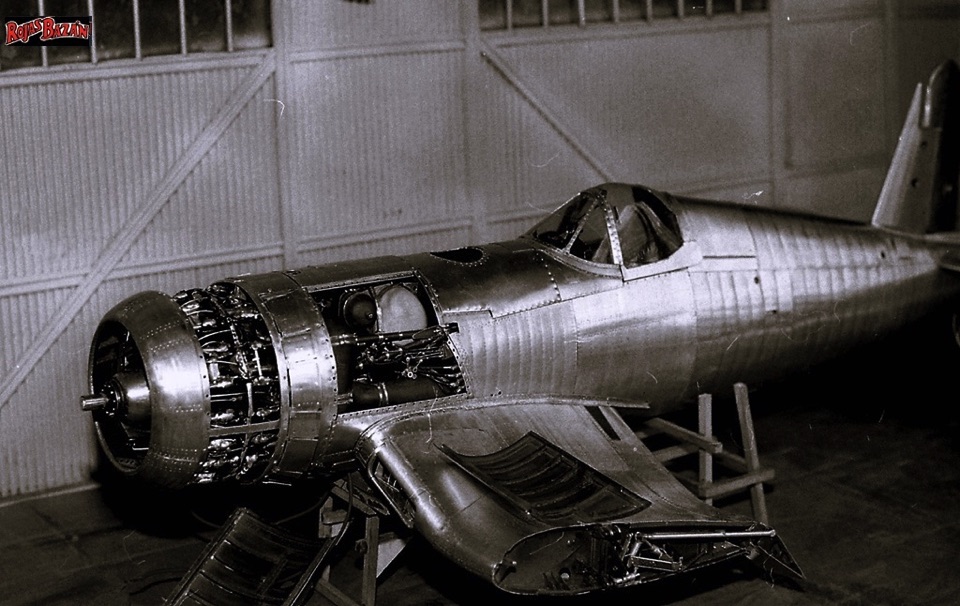

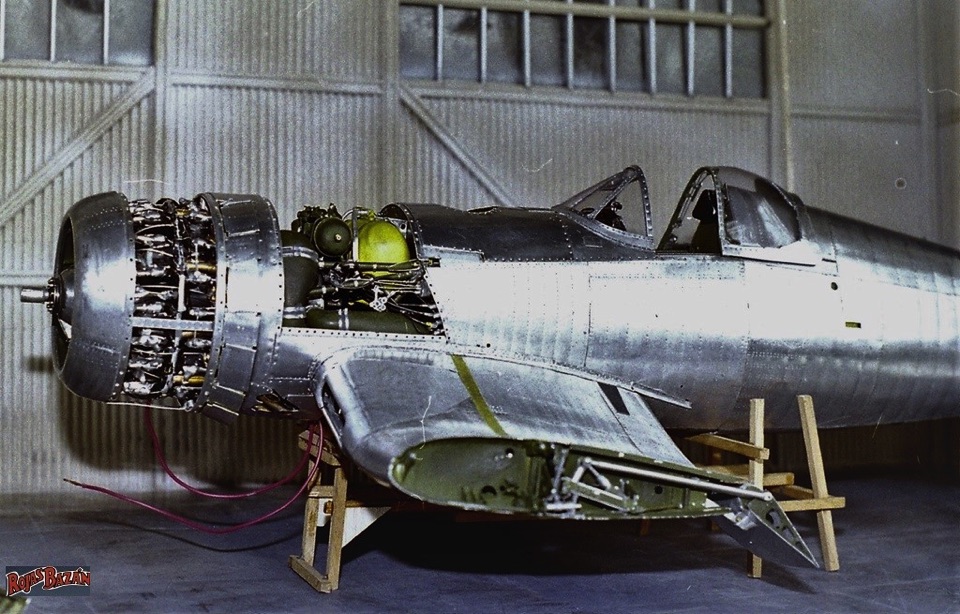

Work in progress

Center section, cowling placed and canopy closed

Center section, cowling removed and canopy open

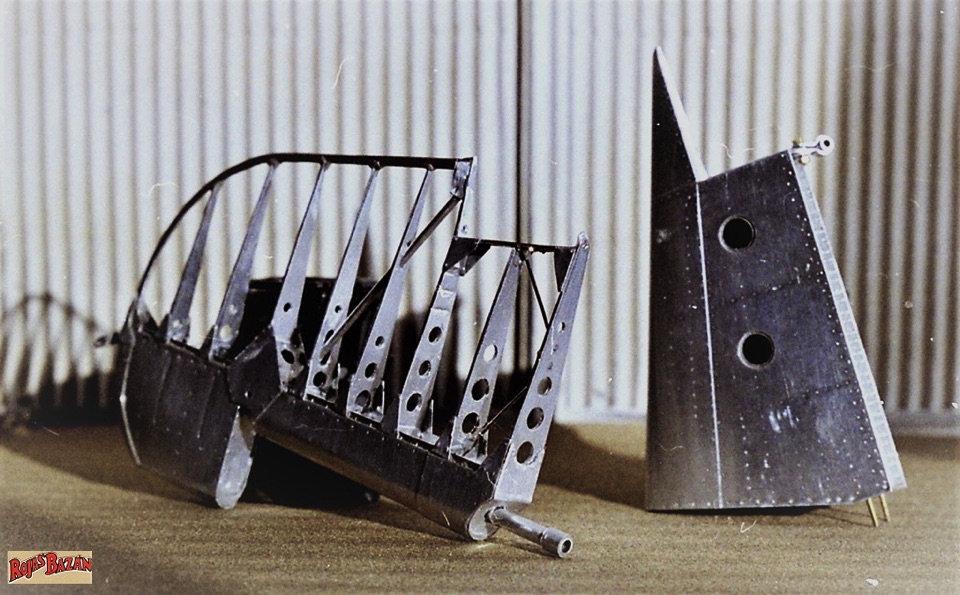

Fin and rudder under construction

Completed fuselage

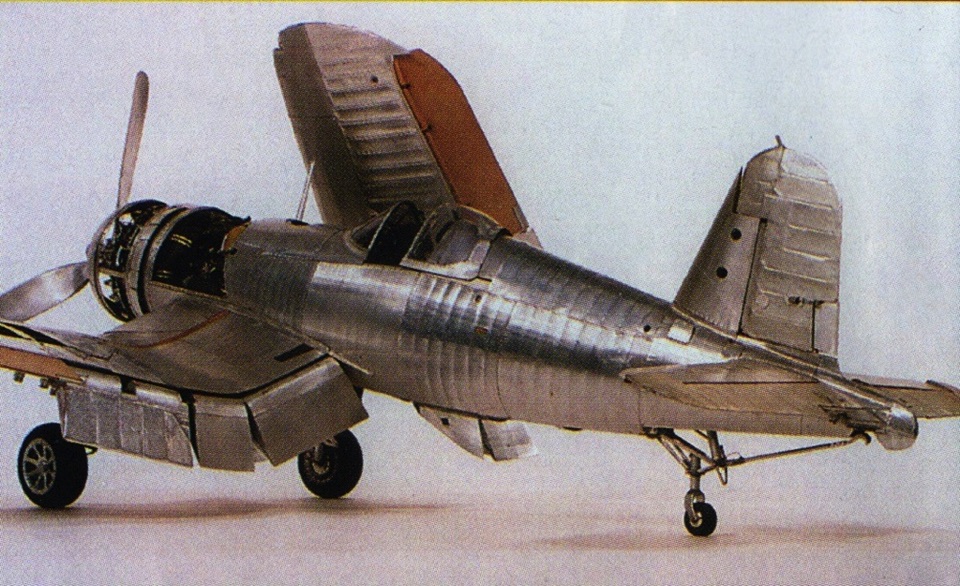

Completed model still in aluminum finish

Completed model still in metal finish

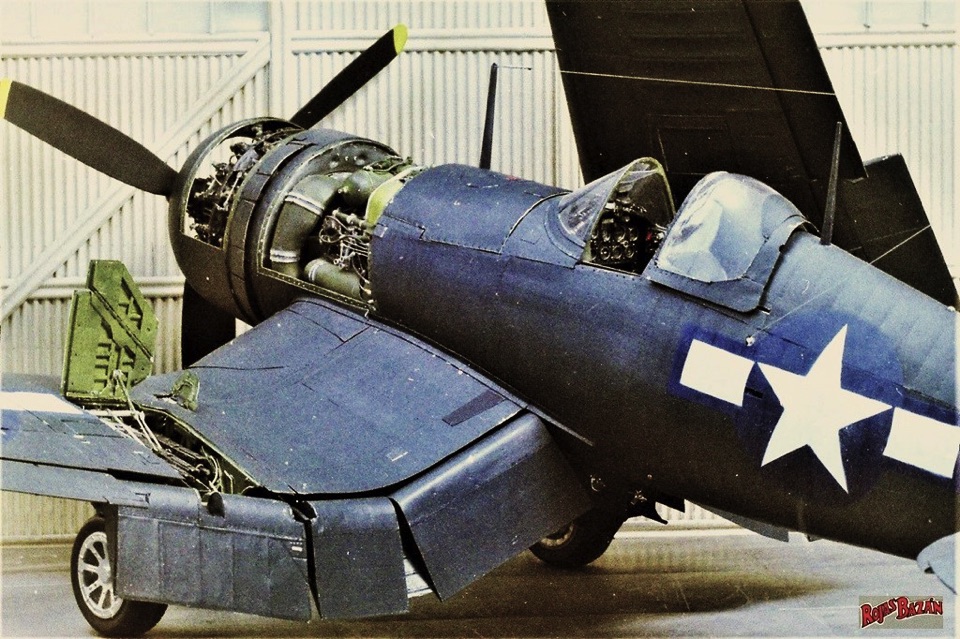

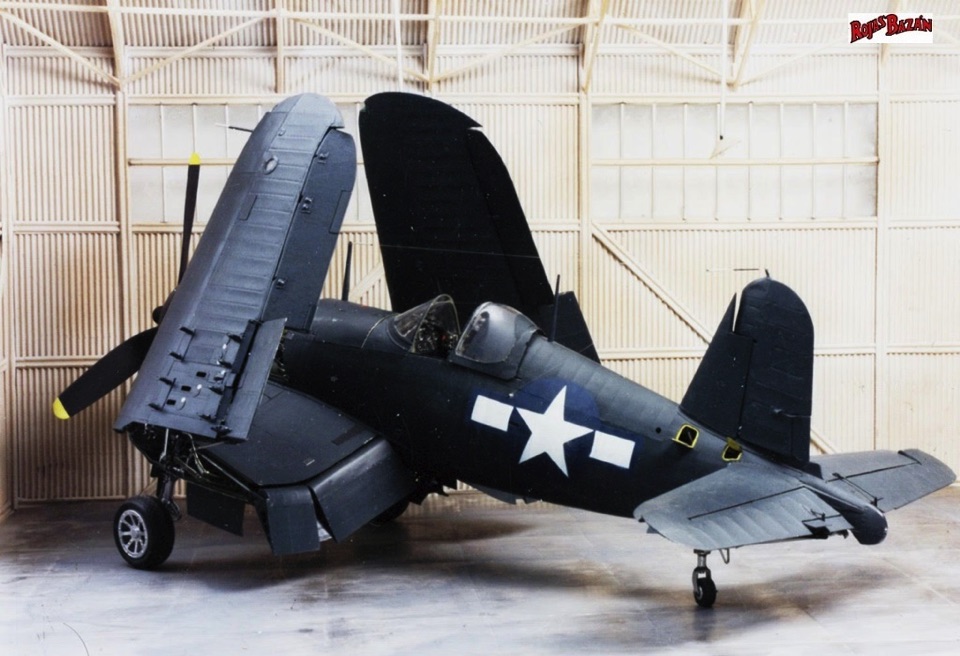

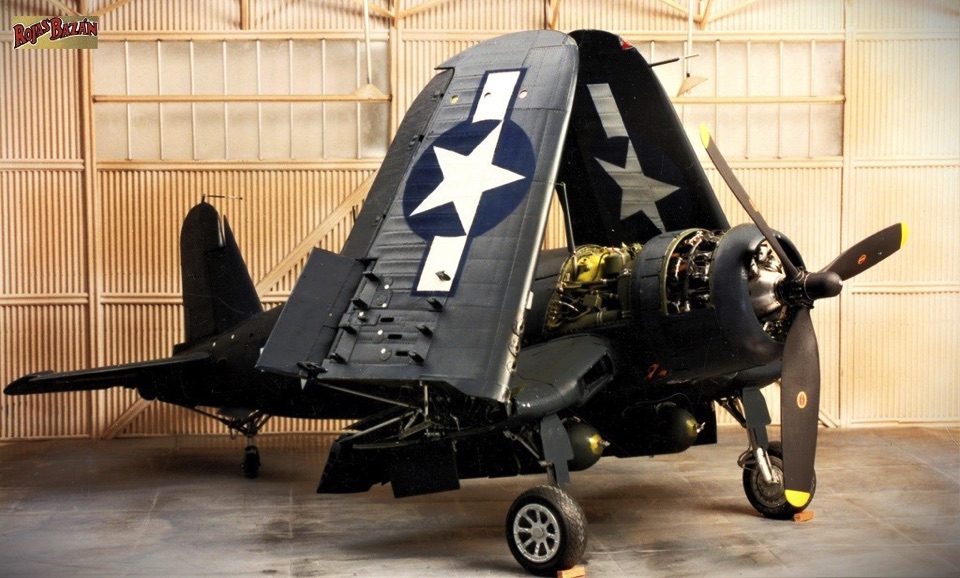

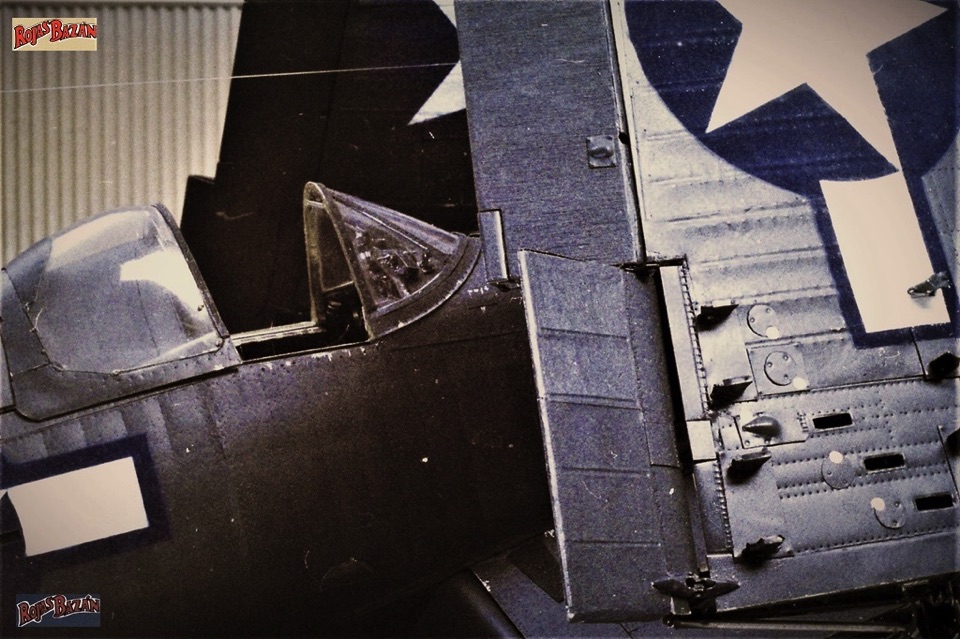

Painted model showing the outer wing in a folded position

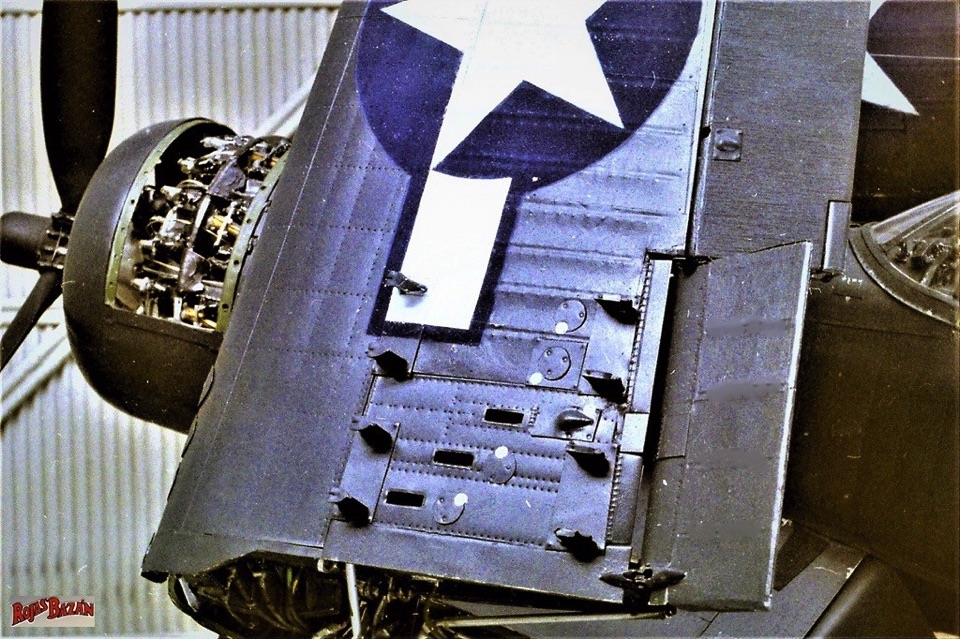

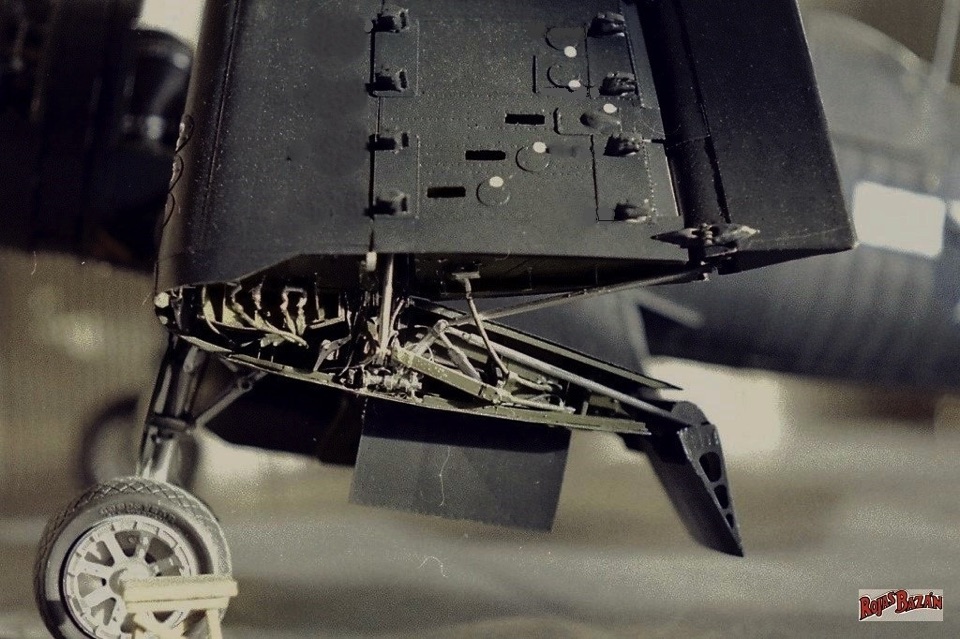

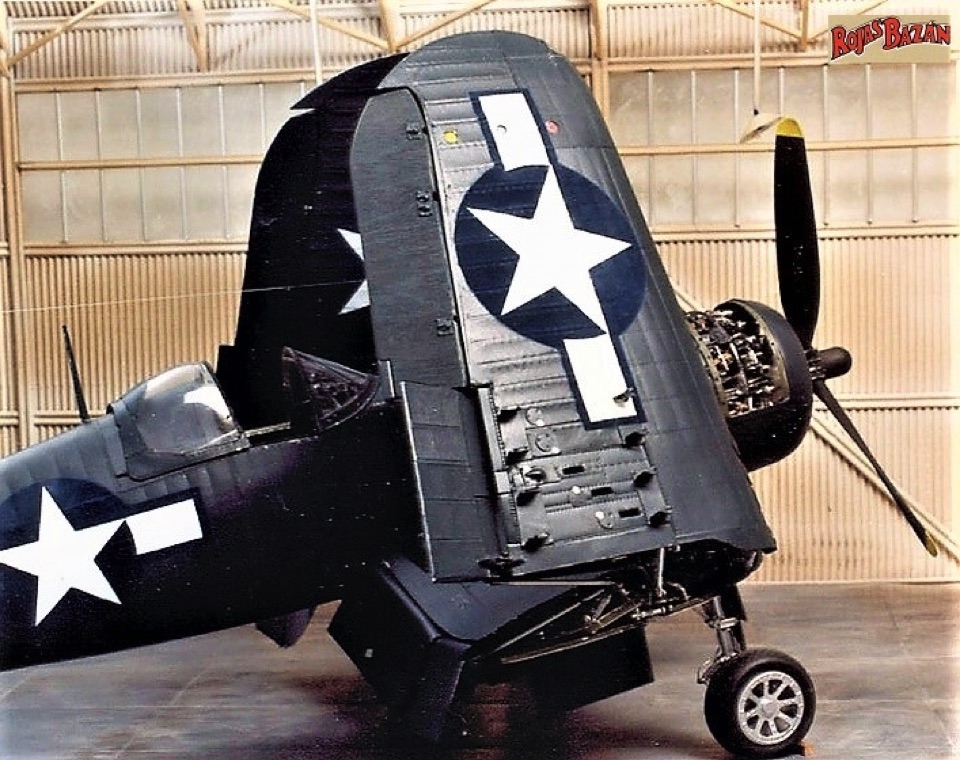

Bottom view of the outer wing panel

Bottom view of the outer wing panel showing fabric-covered flaps and aluminum panels

General view showing the position of ailerons and flaps

Dropped flaps

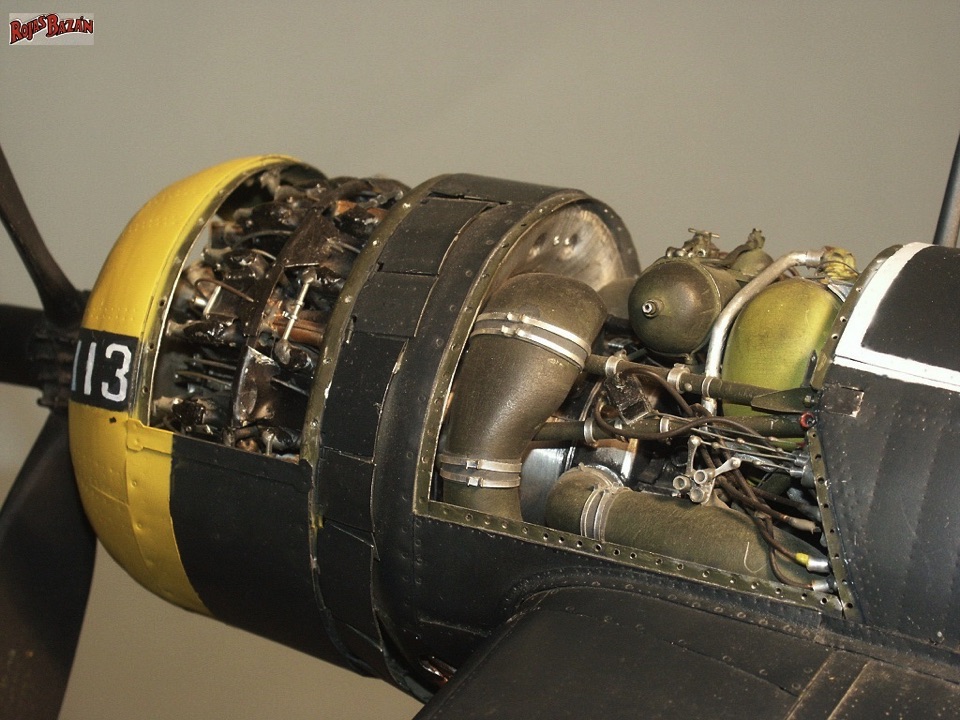

Pratt & Whitney R-2800 - Induction and hydraulic system - Movable cowl flaps

Pratt & Whitney R-2800 - Induction and hydraulic system - Movable cowl flaps

Induction and hydraulic system - Movable cowl flaps

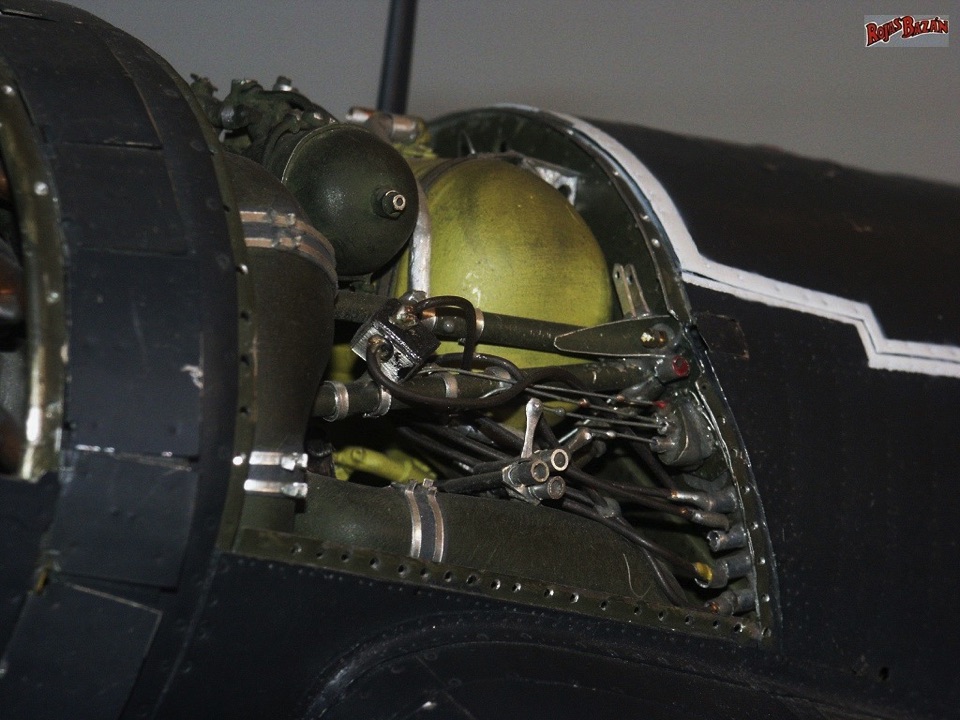

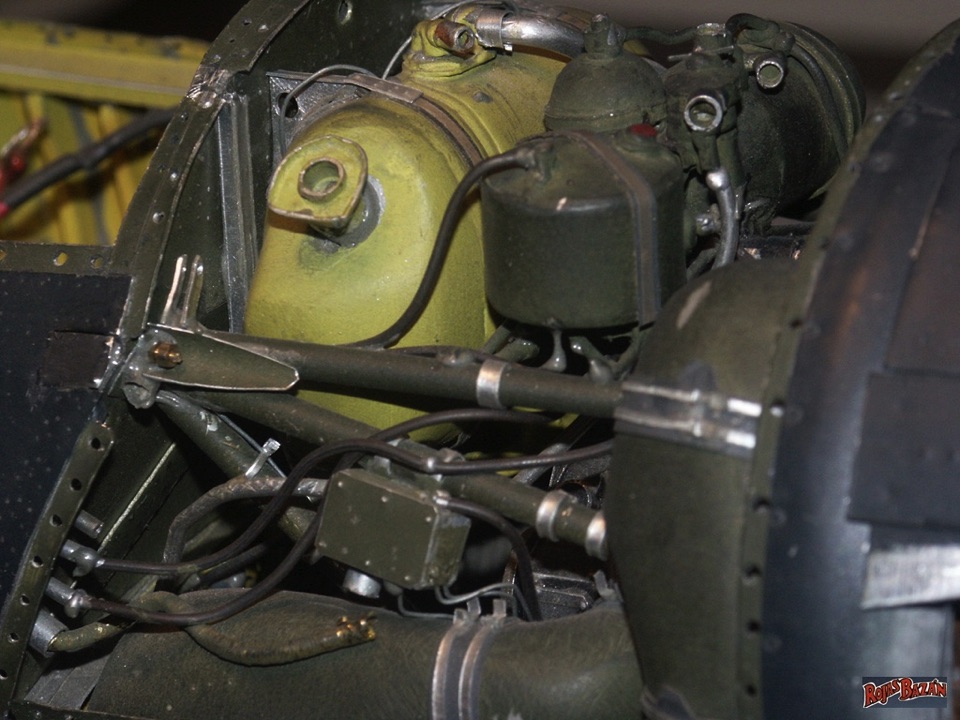

Supercharger housing, oil tank, fire suppressor cylinder, hydraulic system

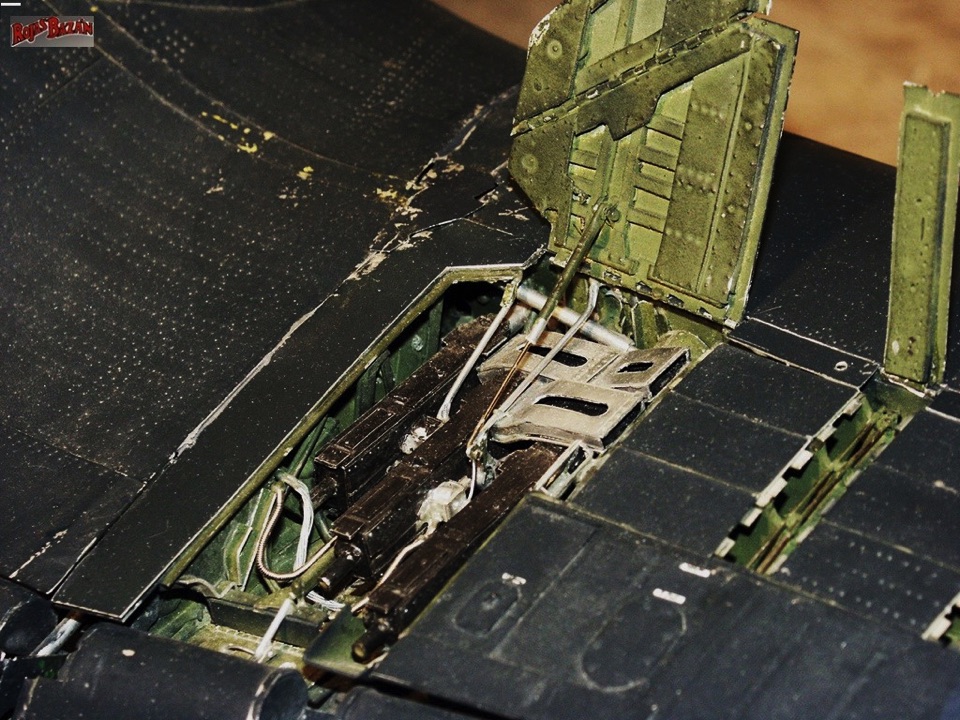

Starboard gun installation - front gun bay door, feed chutes and ammunition boxes

Attachment of outer wing panel with rod, bolts and link assembled

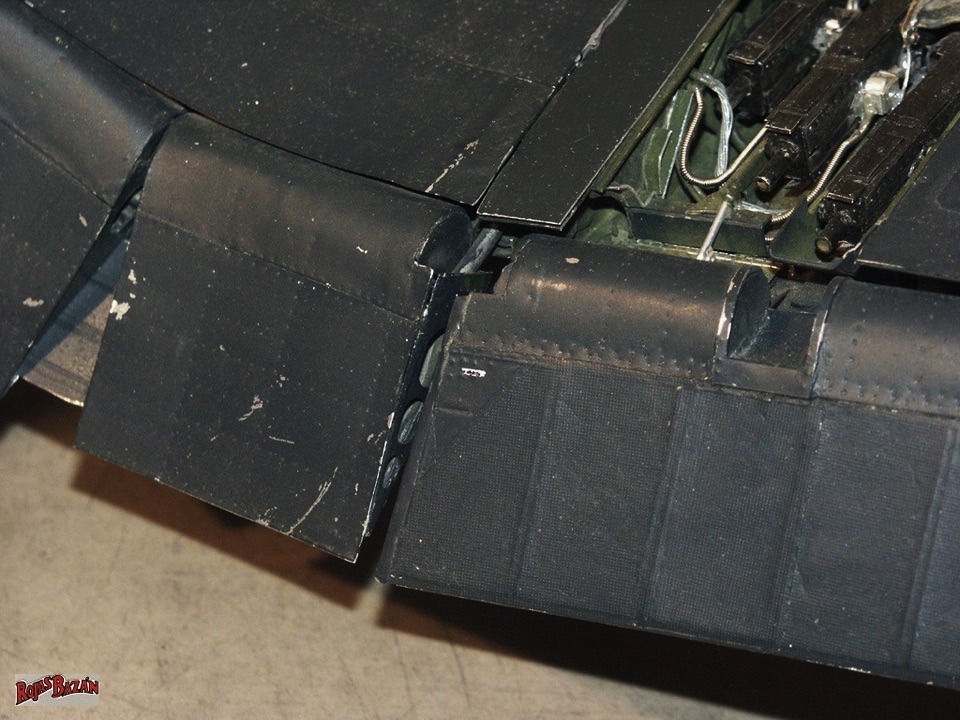

Flaps and gun bay, starboard side

General view from rear

Dropped flaps

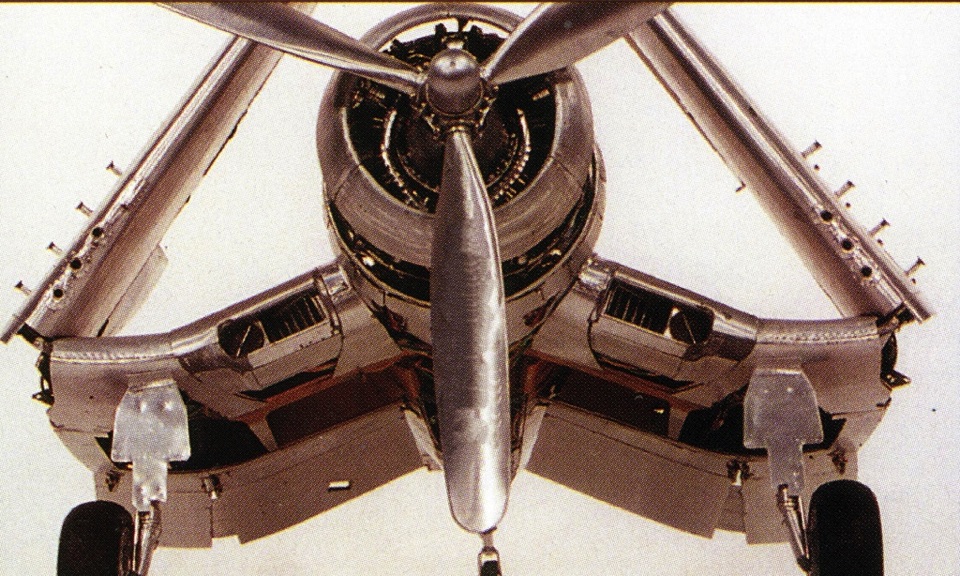

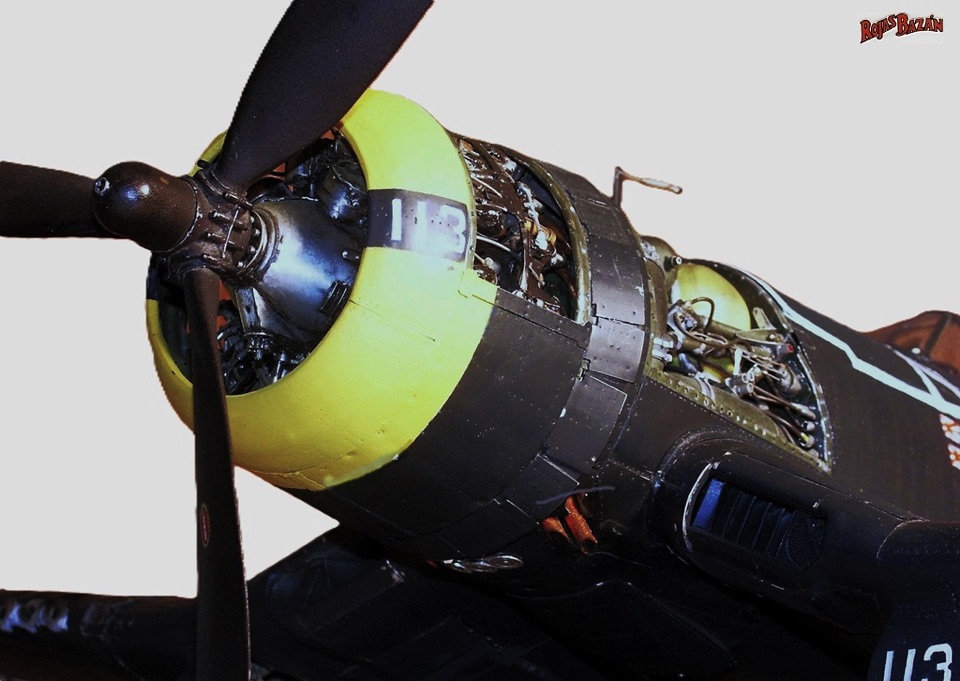

Propeller and engine details

General view starboard side
