Vought OS2U Kingfisher - 1:15 Scale

100% Scratch Built - Handcrafted Aluminum Model.

Built between 2000 and 2015 - Highly detailed scale model - 1941 US Navy radio set -

Pratt & Whitney R-985 Wasp Junior engine - Aircraft Catapult Diorama

Diorama showing the Kingfisher aboard the USS Arizona

Fuselage under construction showing bulkheads, frames, stringers and longerons

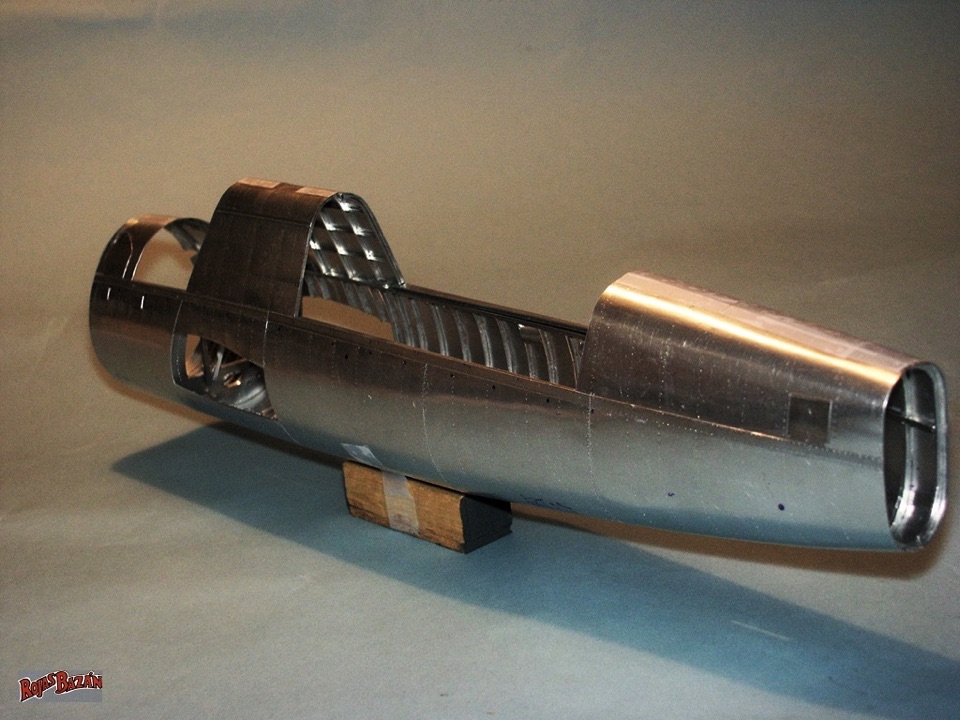

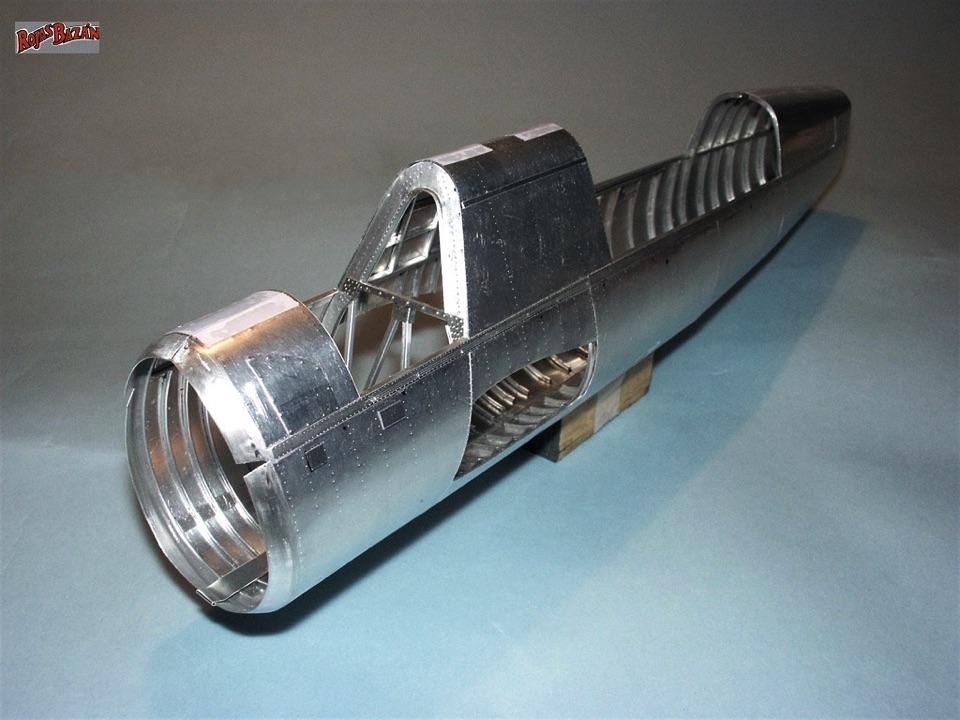

Fuselage under construction

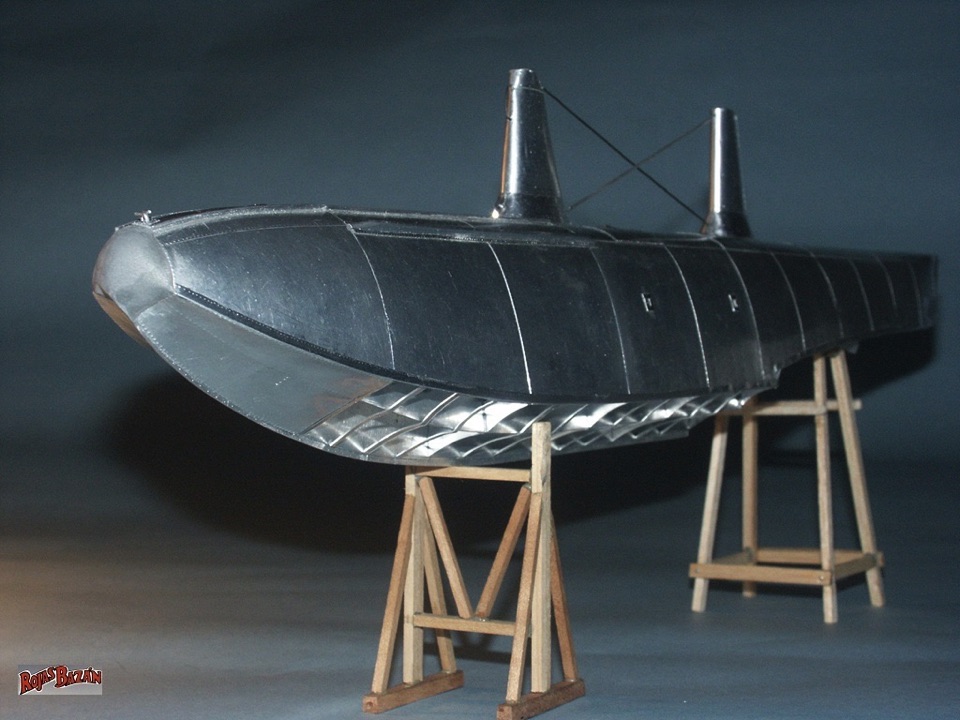

Edo main float under construction showing lower frames

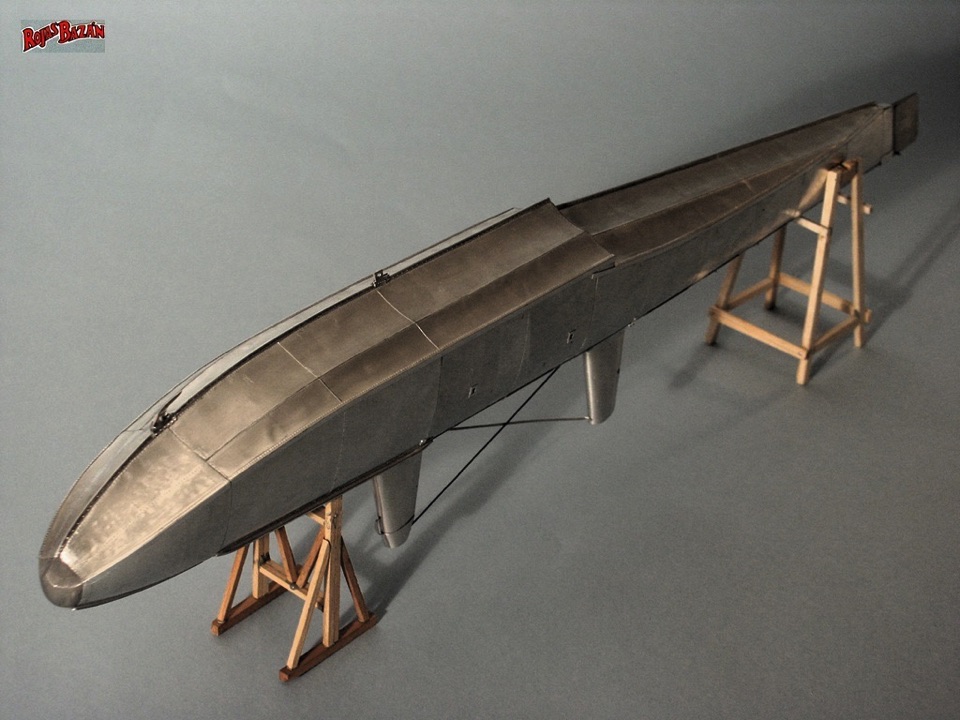

Edo center float bottom view

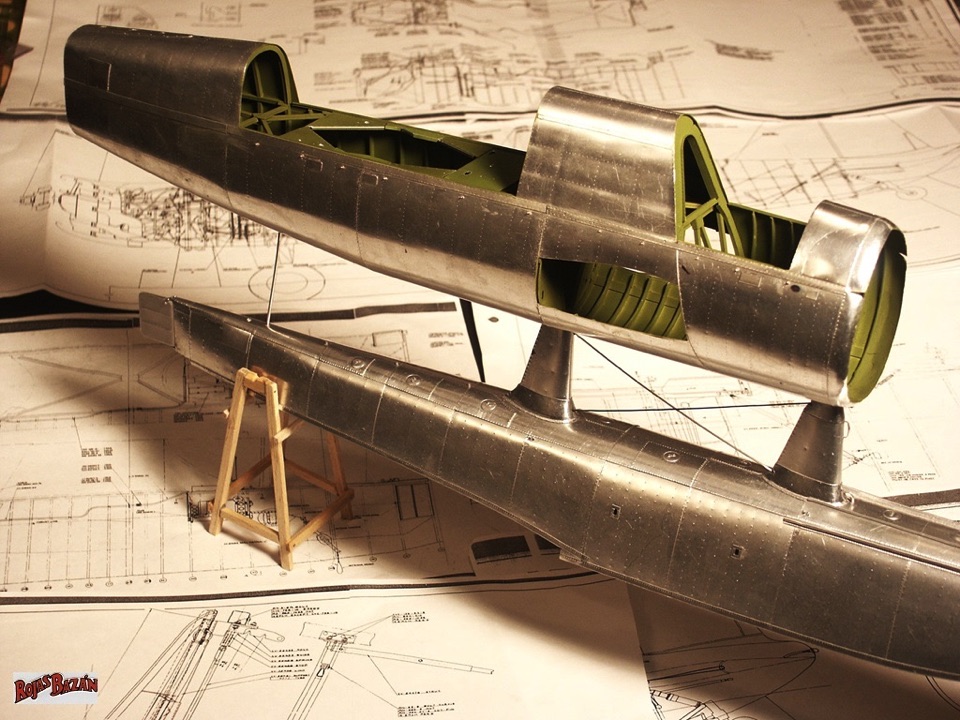

Fuselage with the main float attached

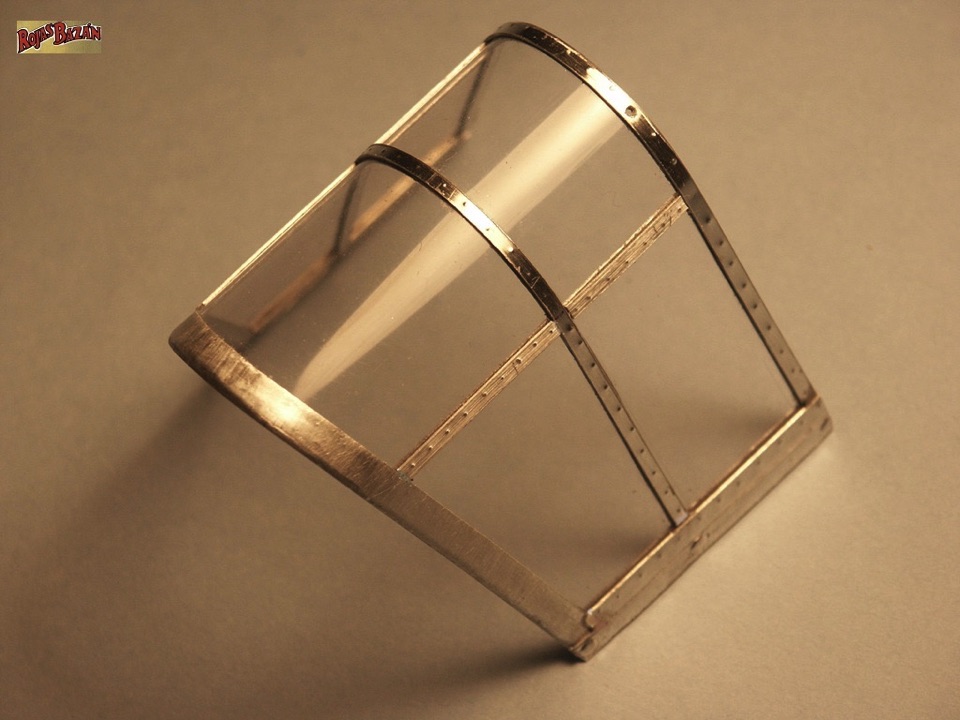

Pilot canopy

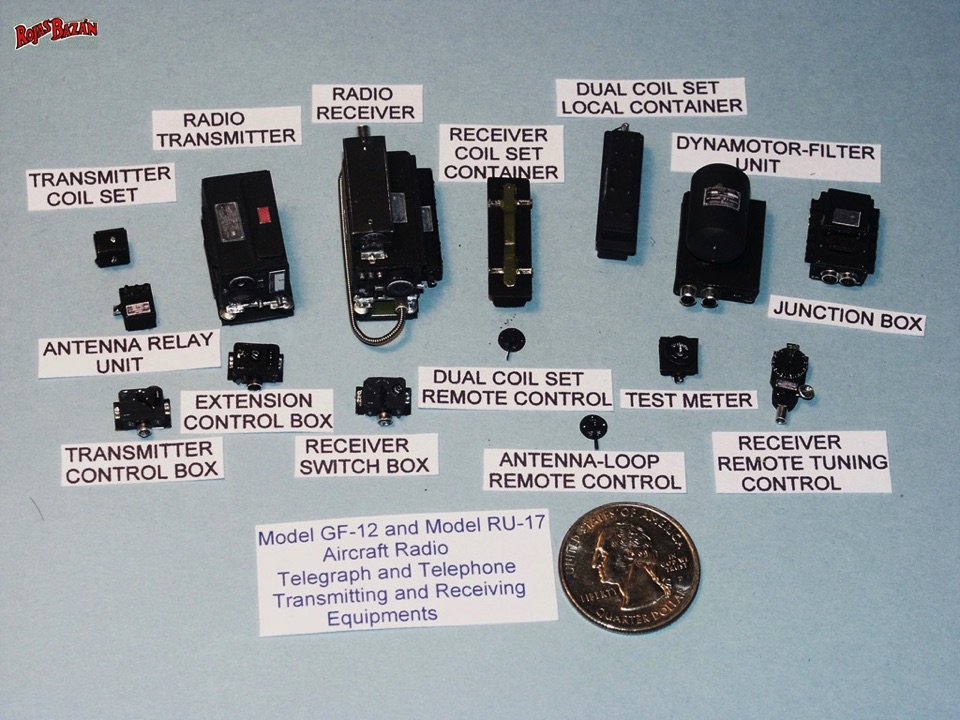

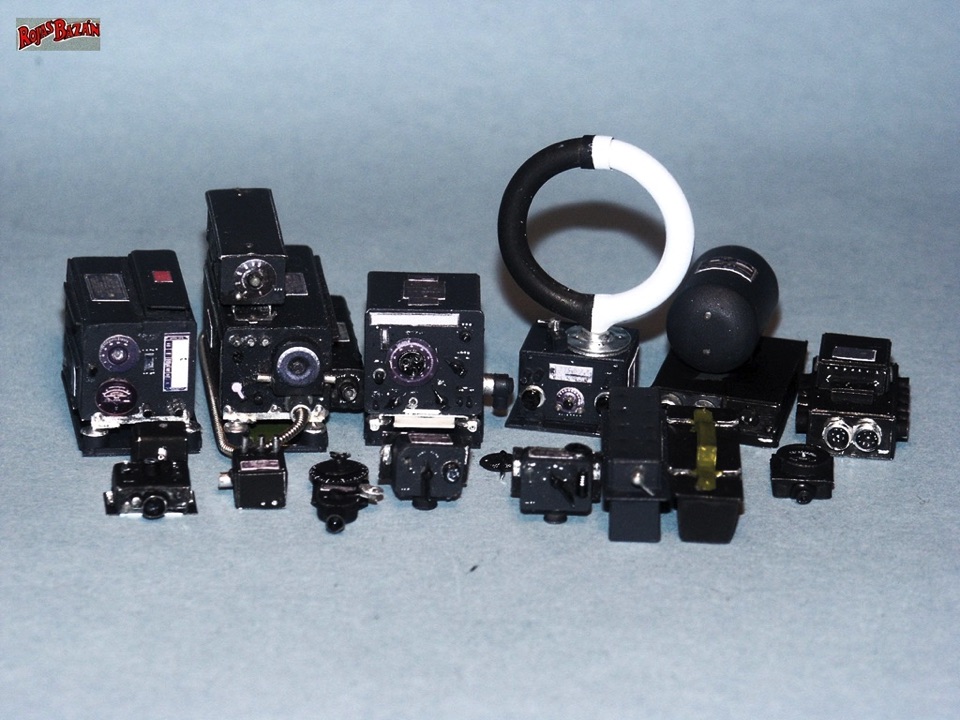

Model GF-12 and RU-17 transmitter and receiving equipment (on mm grid paper)

Model GF-12 and RU-17 transmitter and receiving equipment

Radio equipment

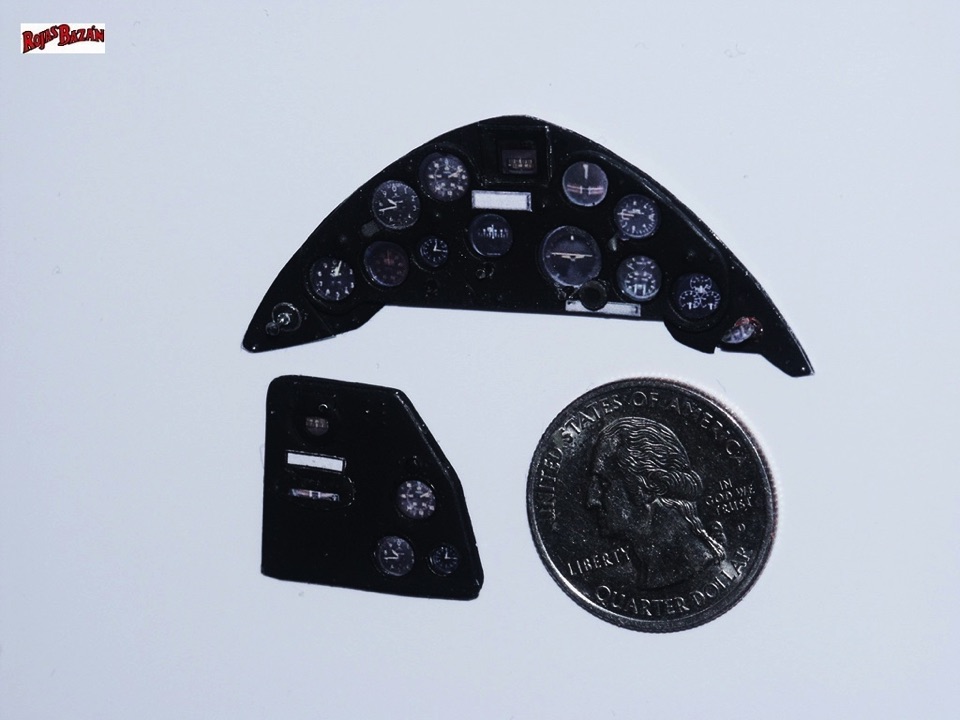

Pilot's main instrument panel and auxiliary panel

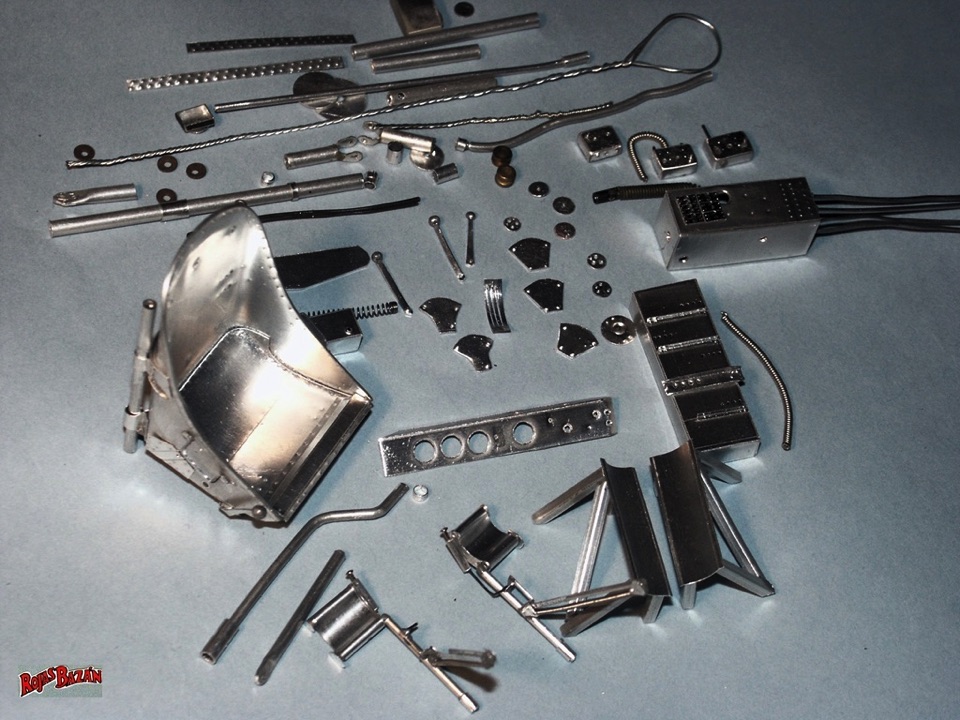

Building pilot's seat and cockpit accessories in aluminum

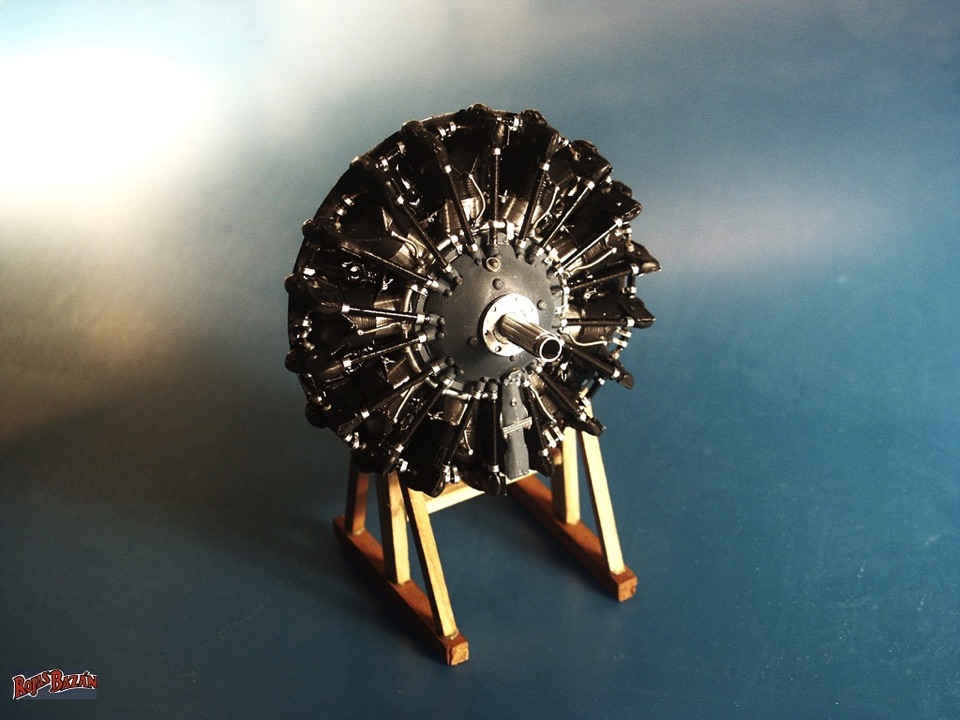

1:15 scale Pratt & Whitney R-985 Wasp Junior engine

Fuselage with centre float

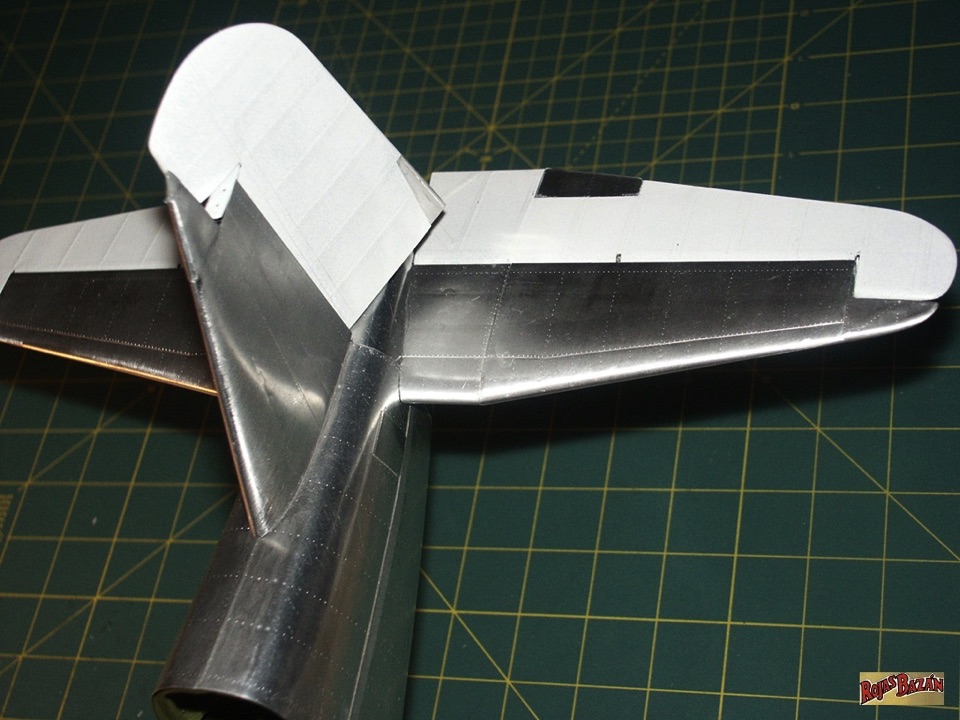

Fabric covered elevators and rudder

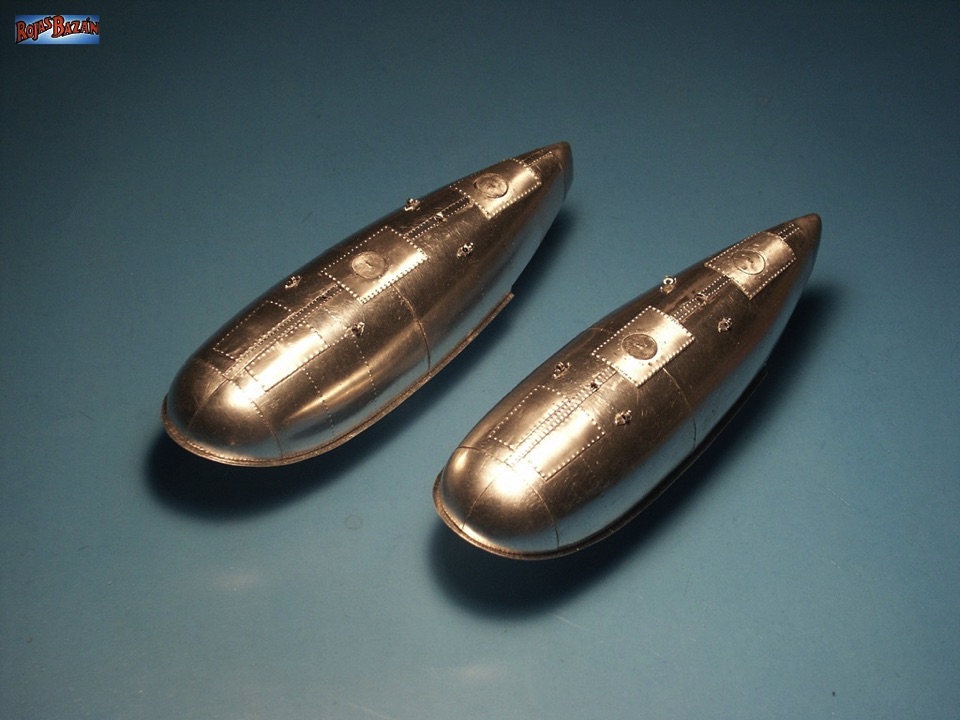

Stabilizing floats

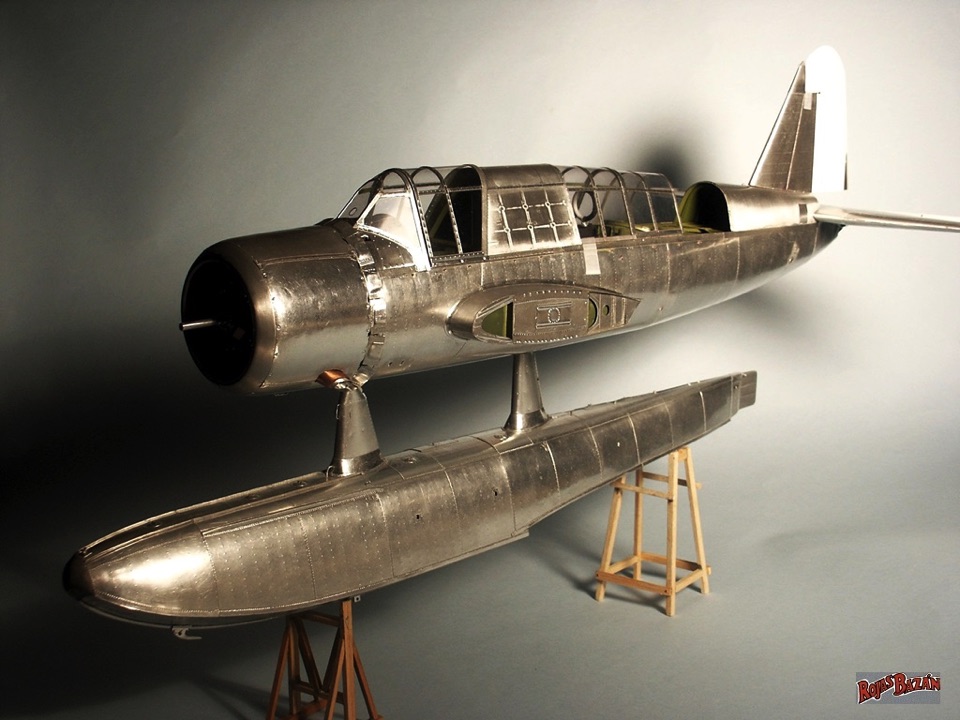

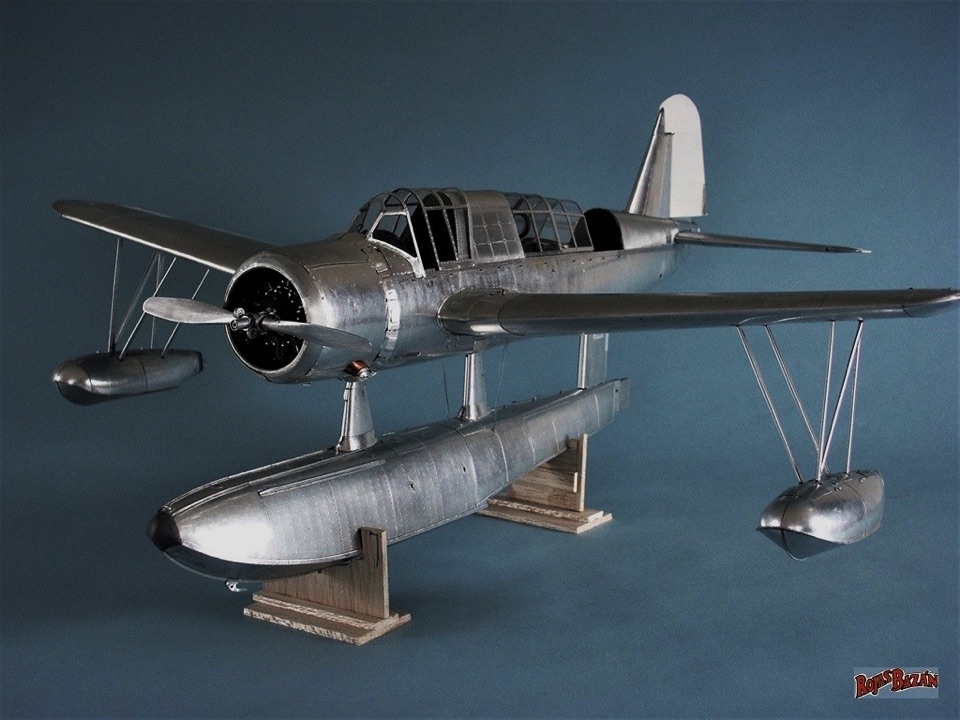

The complete model in natural metal

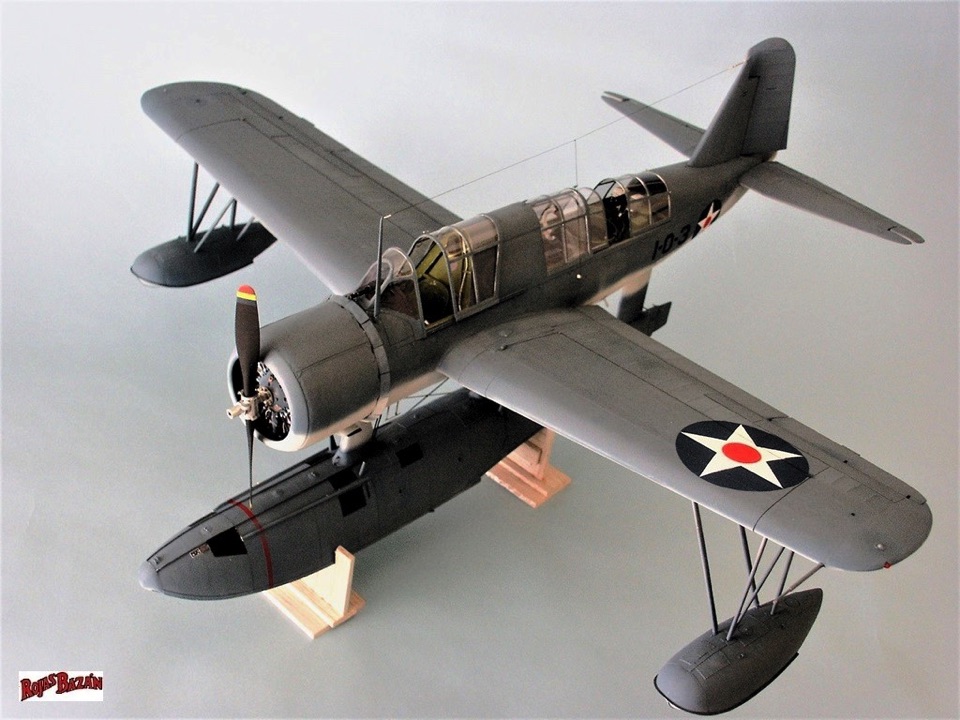

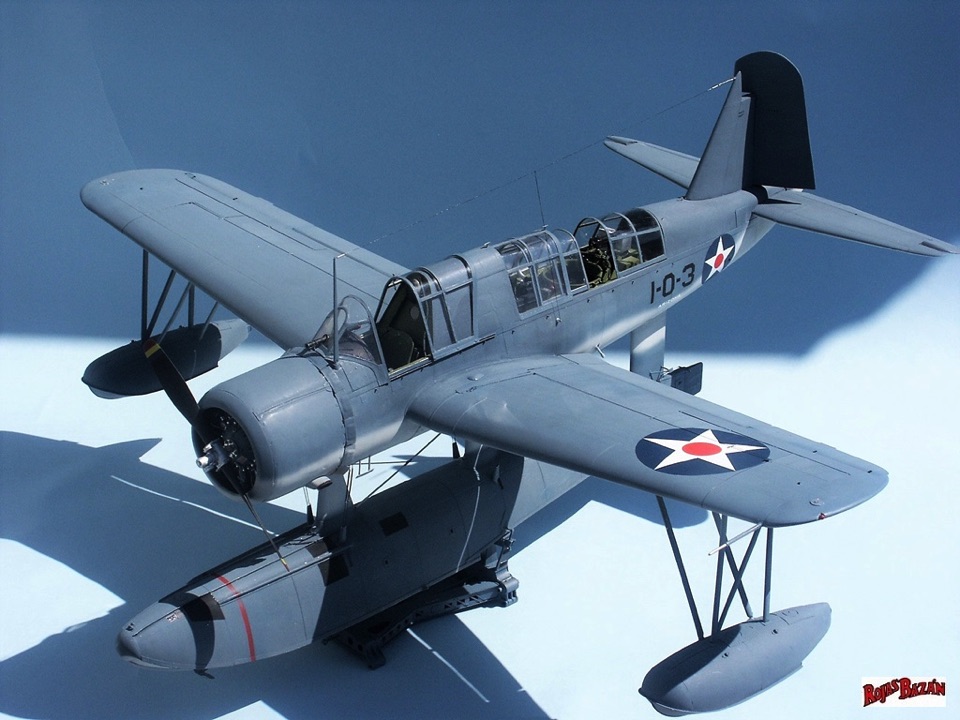

The colors represent an OS2U aboard the USS Arizona at Pearl Harbor, December 1941

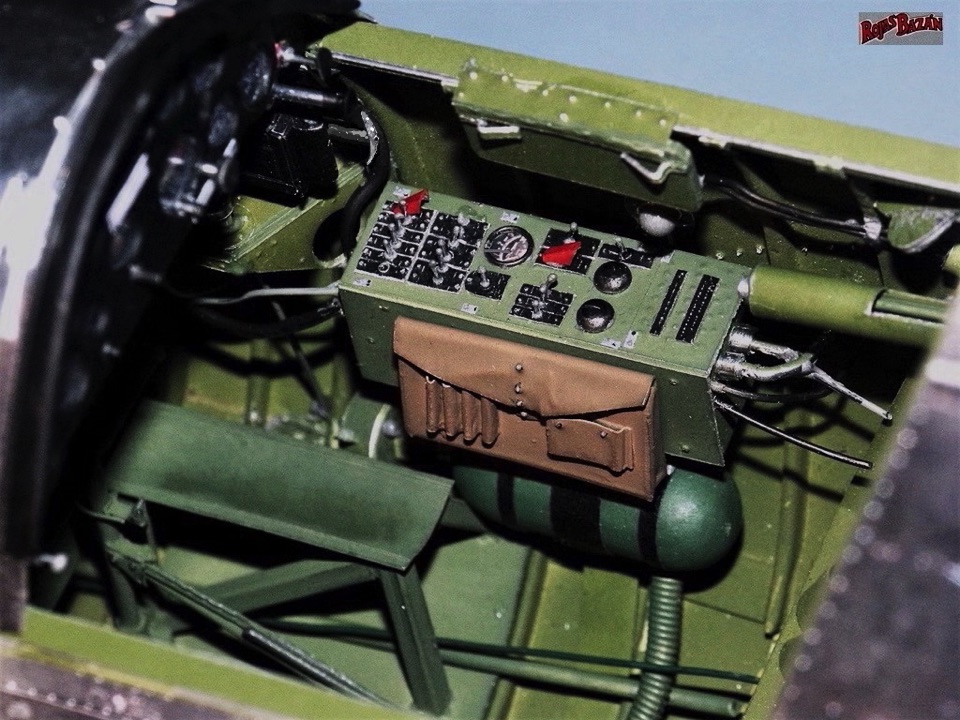

Pilot's cockpit starboard side showing the electrical distribution panel

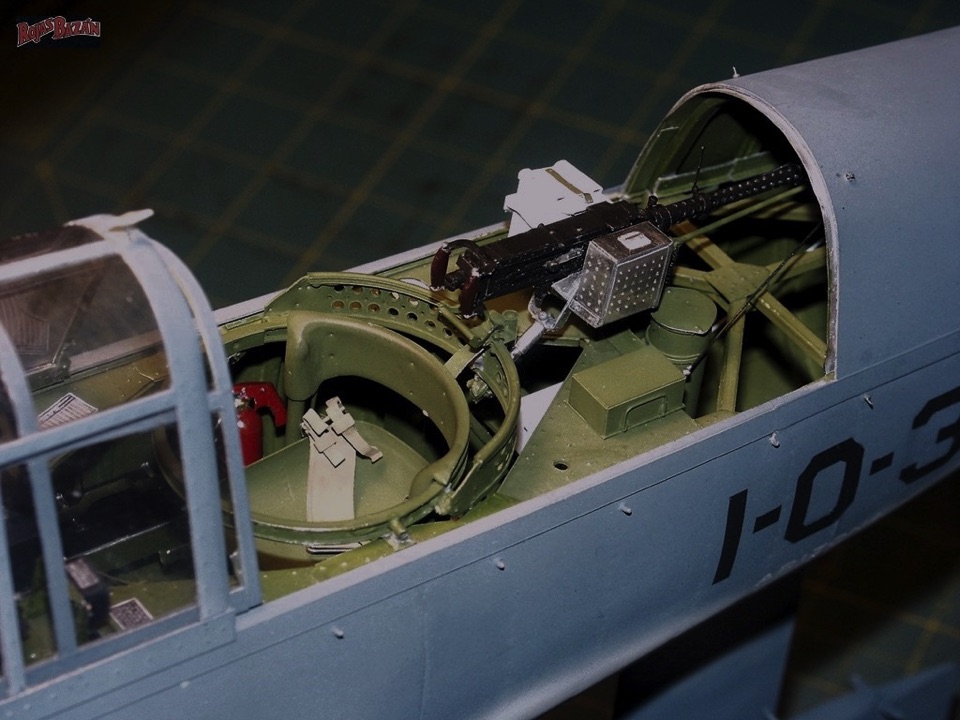

Observer/radio operator's Colt-Browning M2 .30 caliber machine gun

on a flexible ring mount

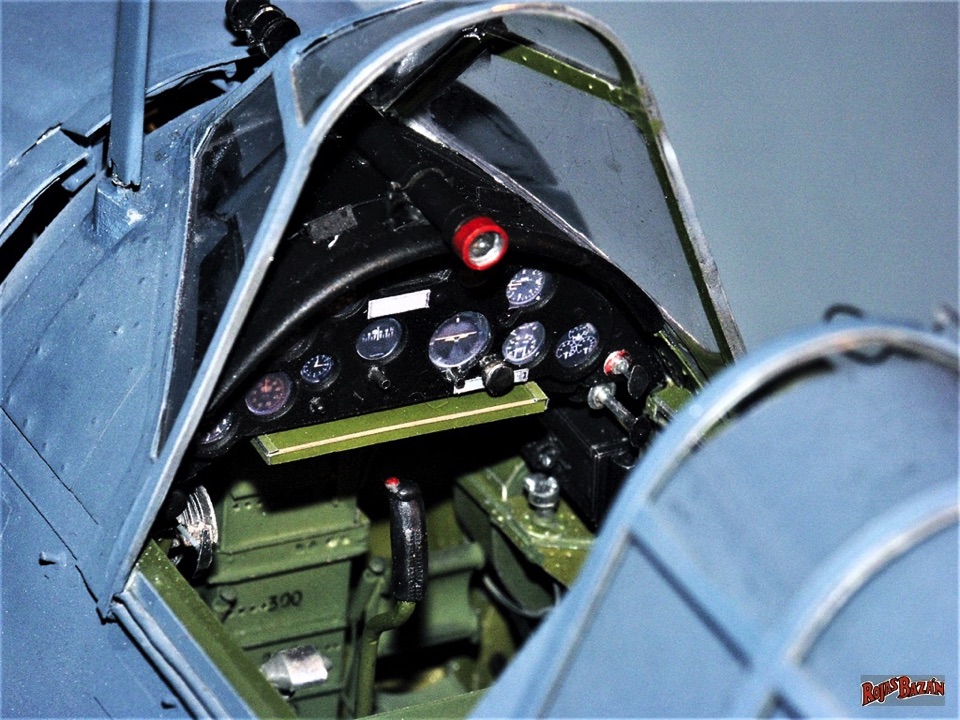

Pilot's instrument panel and telescopic sight

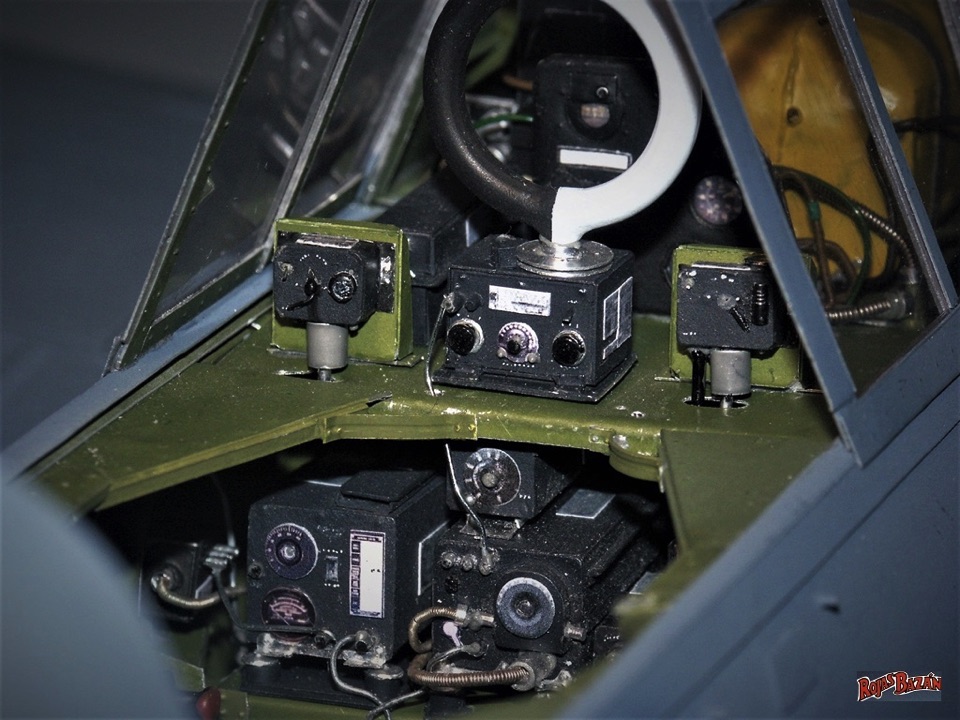

Close-up of the rear cockpit showing the radio equipment

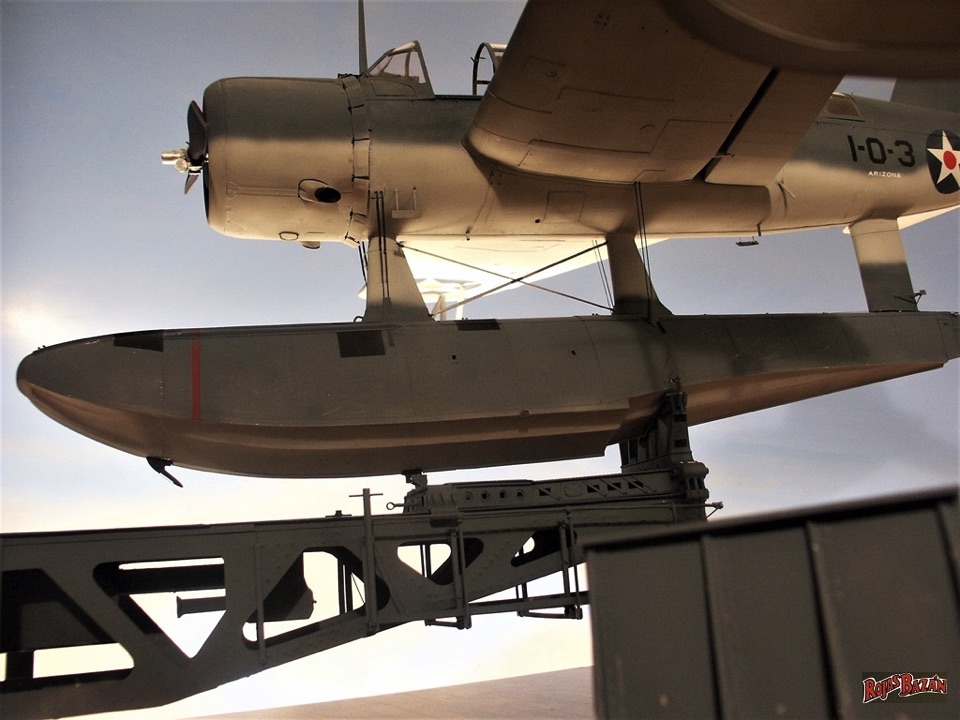

Diorama showing the Kingfisher sitting on the catapult

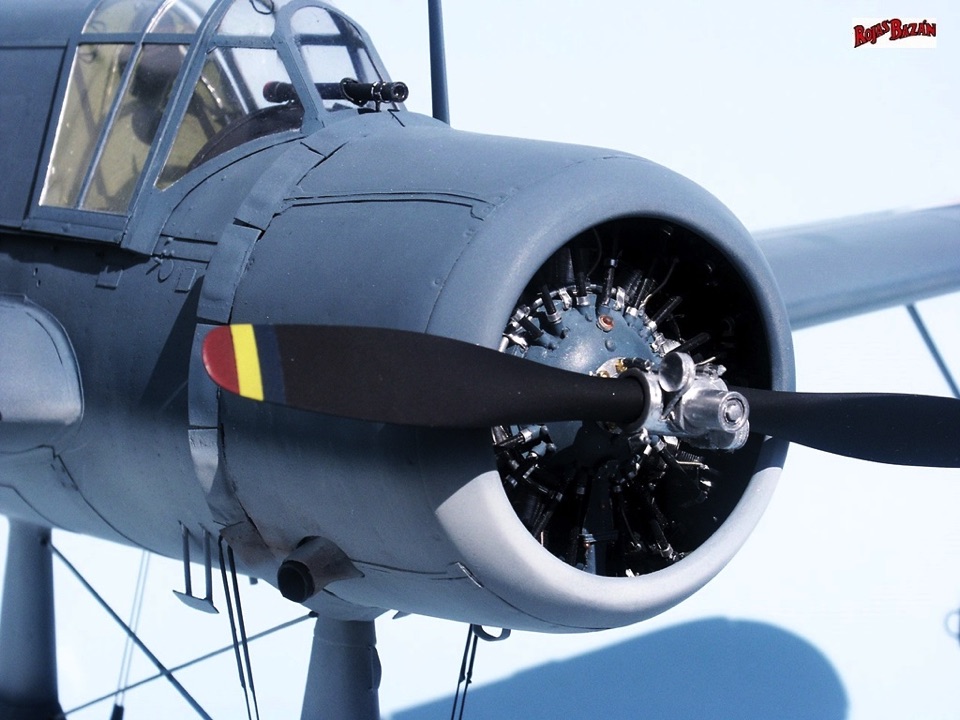

Close-up of the propeller and Pratt & Whitney R-985 engine

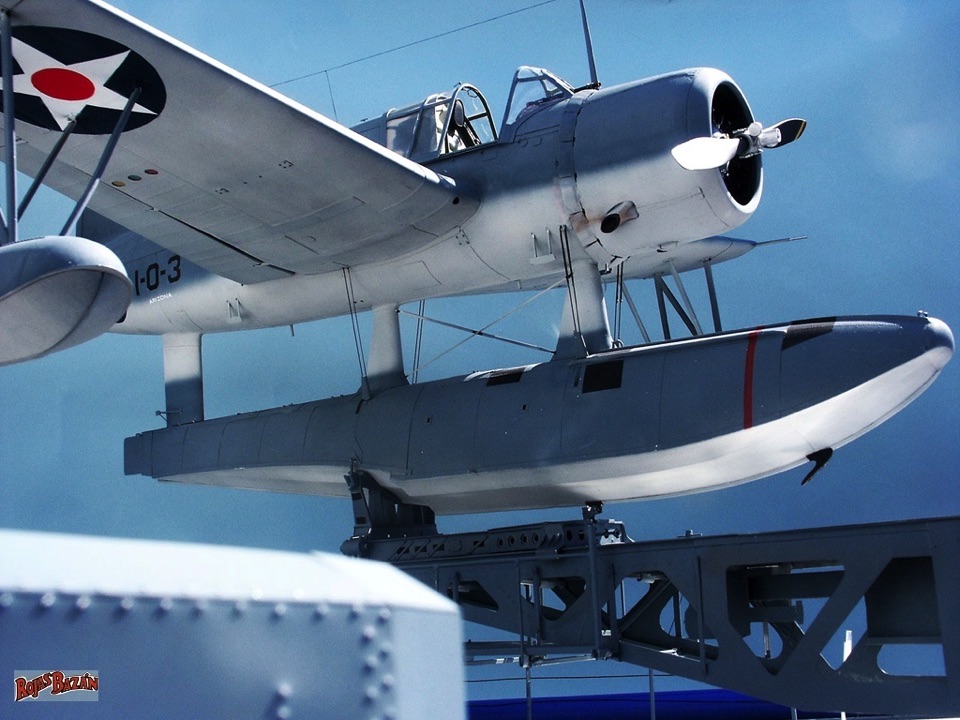

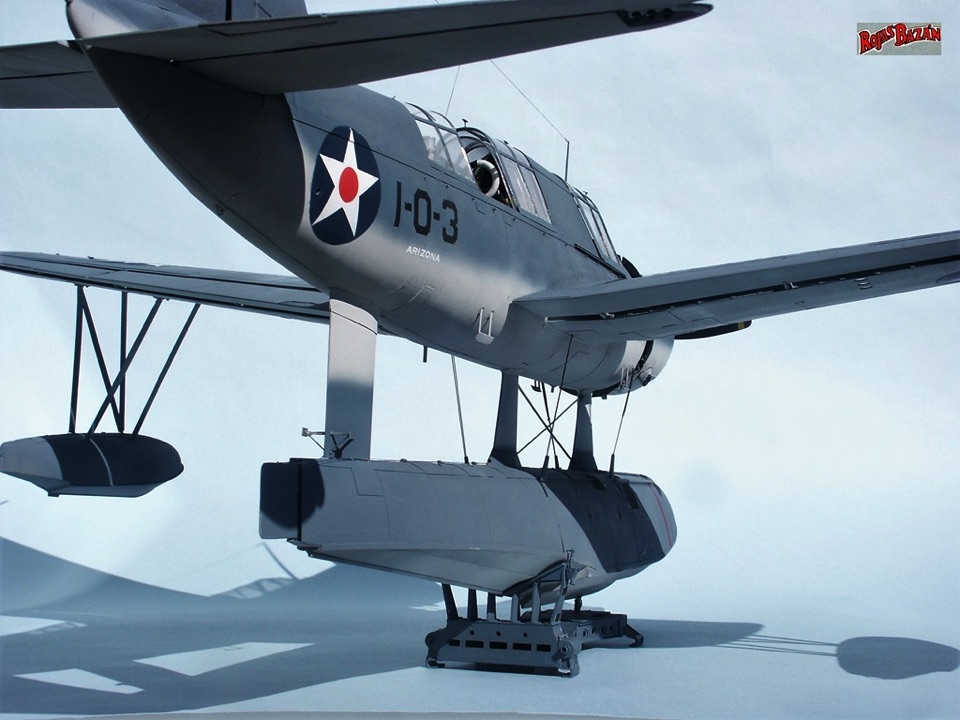

View of the OS2U sitting on the carriage

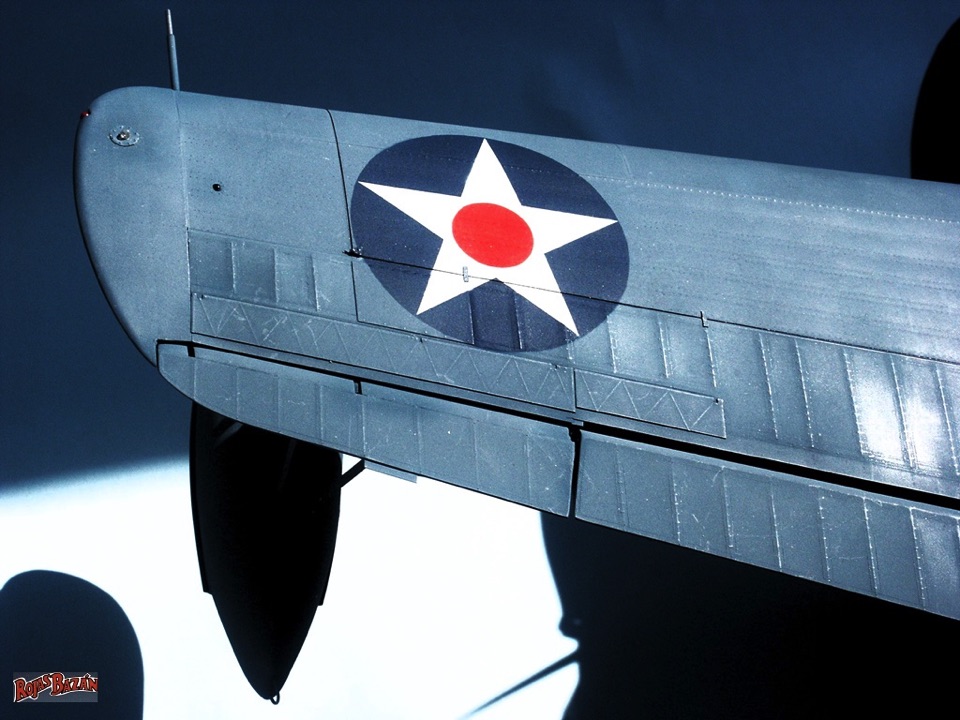

Port wing showing fabric covered aft of the mainspar, spoiler, aileron and flap

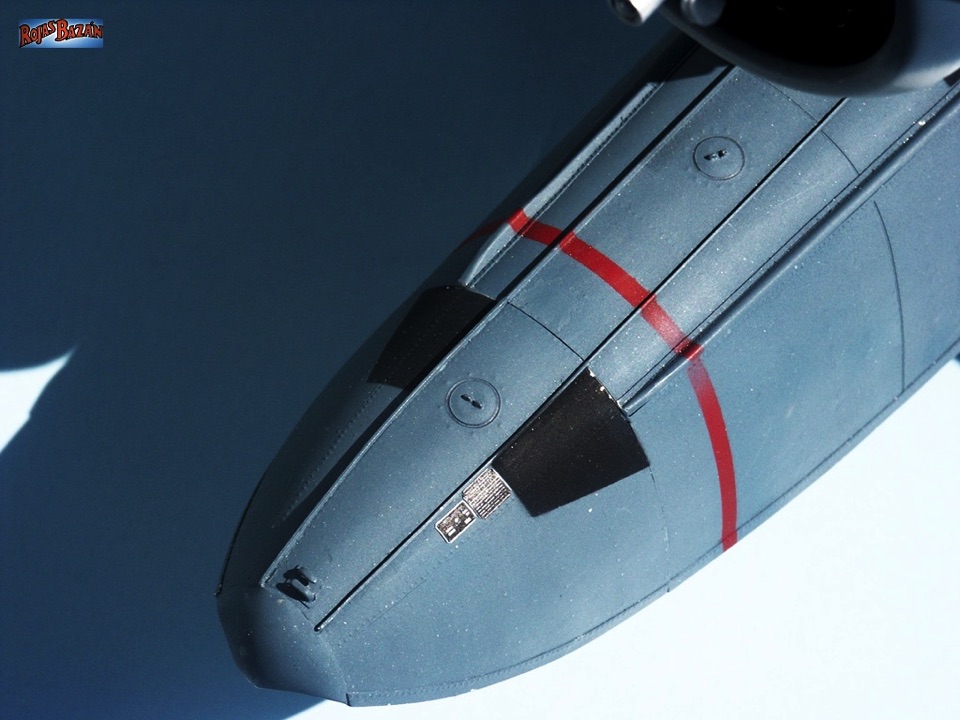

Close-up front of the Edo main float

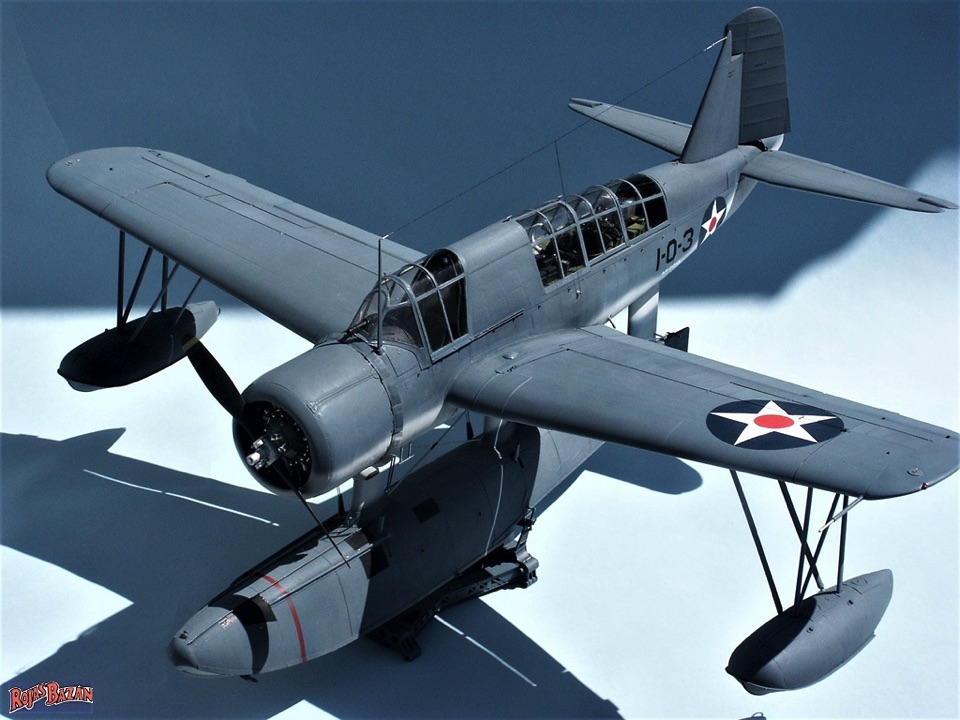

Complete model with the opened canopies

Complete model with the closed canopies

Diorama showing the Kingfisher aboard the USS Arizona
